Shop for Seeburg jukebox Needles.
Scan through the pictures below, you should
be able to find a match for the needle in your Seeburg jukebox.
If you
don't see a match, send me a picture of the needle and cartridge along with any markings
and I'll see if I can find something for you.
"S" Type
Needles

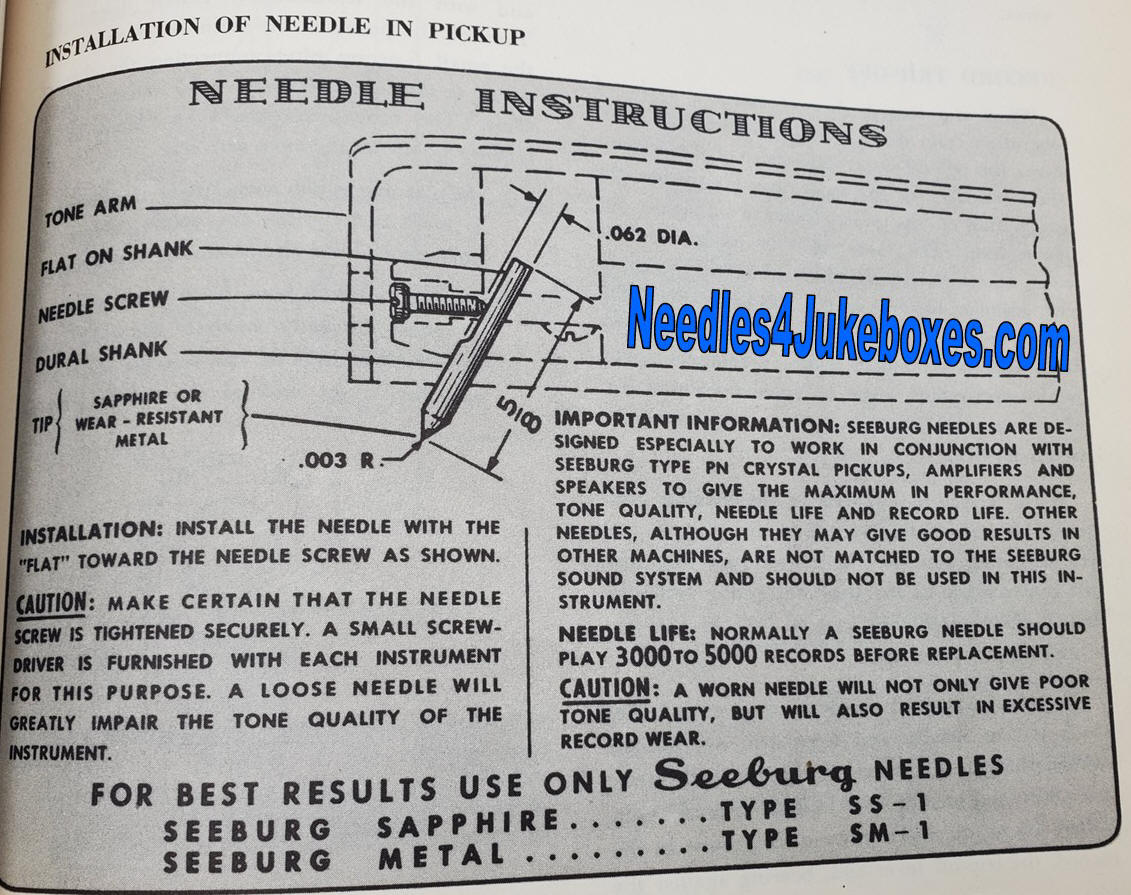

This needle is made to fit any tone arm /
pickup that uses a set screw to hold the needle in place.

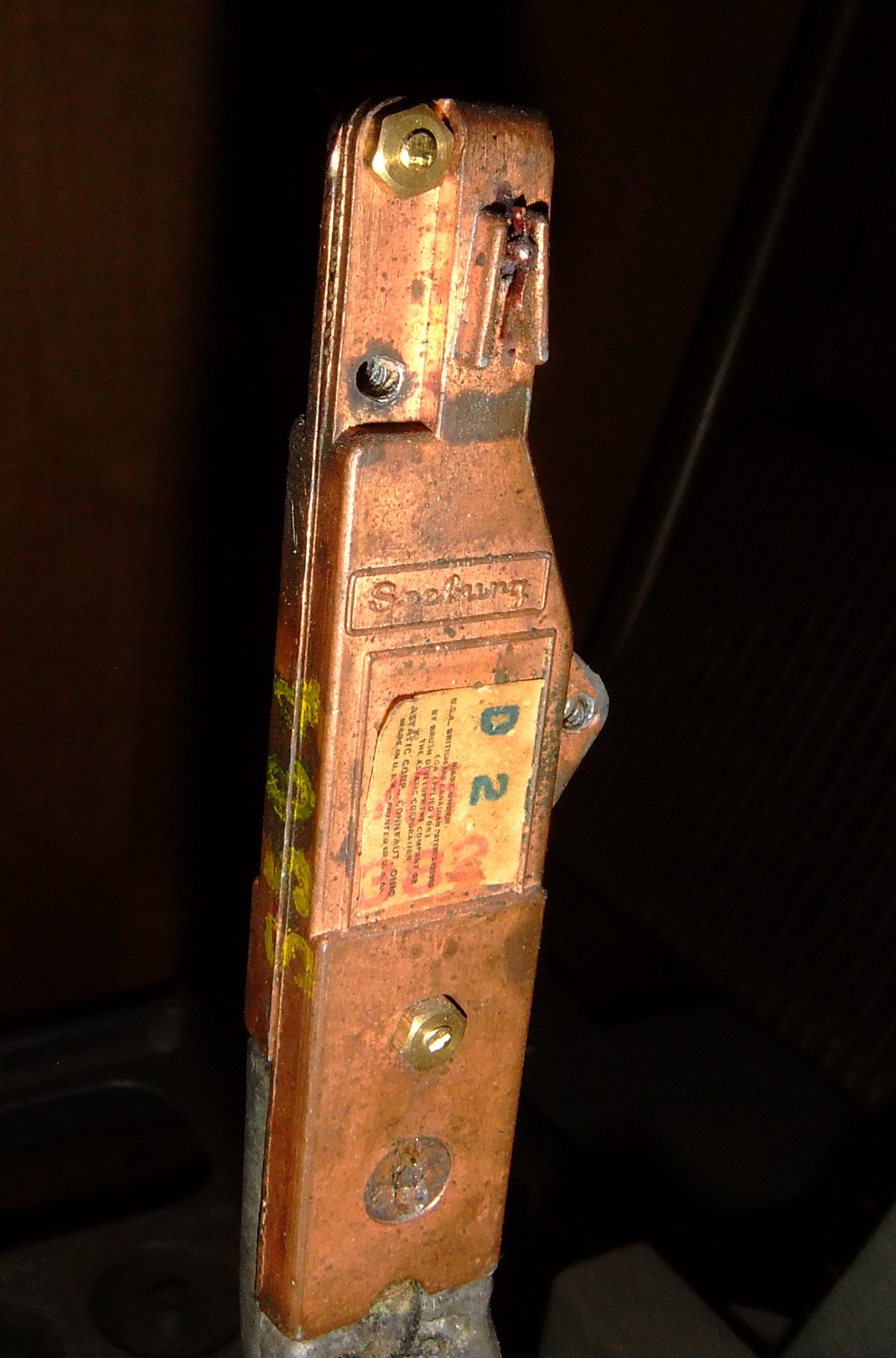

Virtually every model from the 30's through 1948, with either a magnetic or crystal style pickup originally used
this type needle.
Includes all Seeburg models thru the P148
Replaces Astatic #N4-3S
3 Mil Sapphire Tip for 78 Records $19.99
Replaces Astatic #N4-3S
S Needles for 78 Models converted to
play 7" 45 RPM Records
.7 Mil Diamond Tip Out of Stock
1 Mil Sapphire Tip $10
|
Seeburg Tracking Pressure Guide
Provided as a courtesy

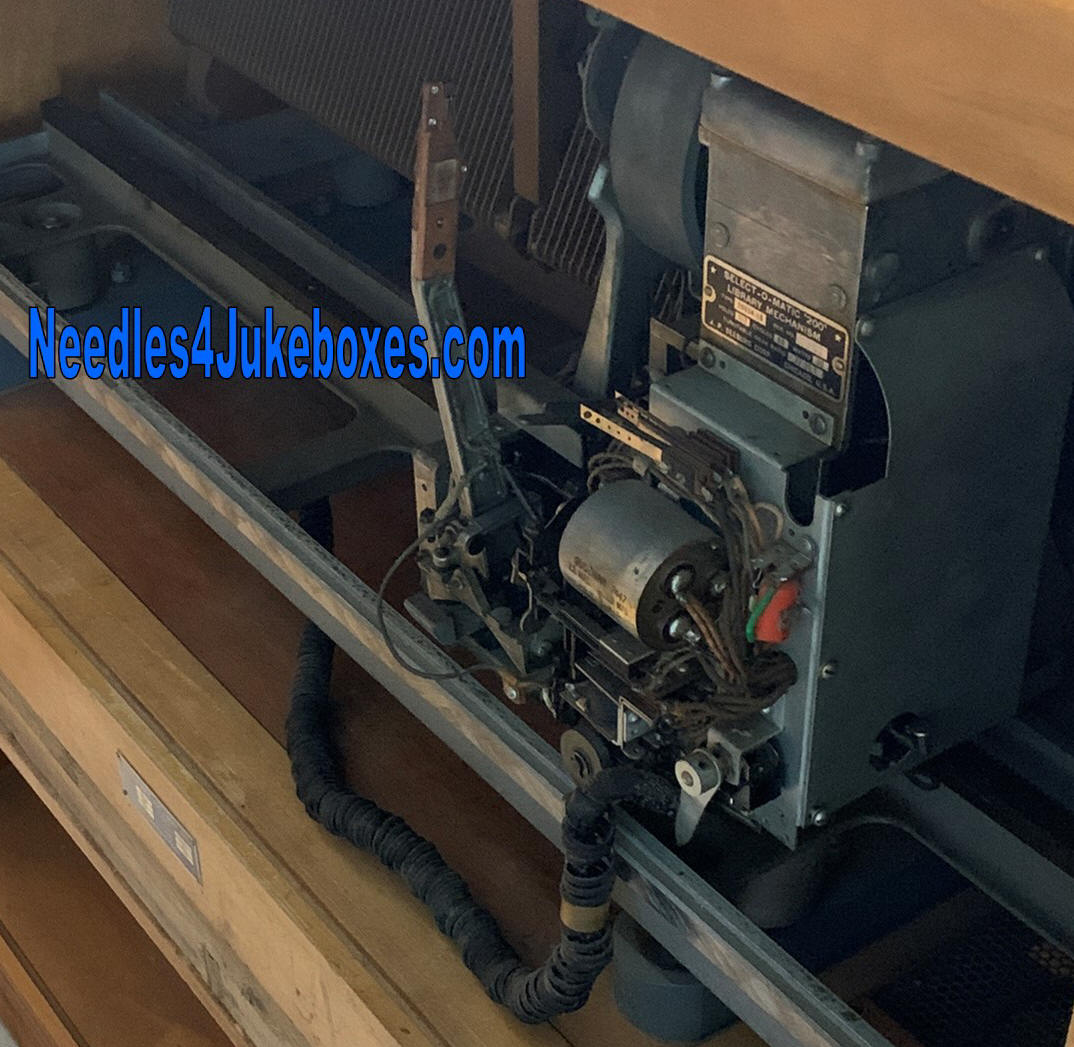

Seeburg Industrial Library Unit
This unusual cartridge was only used
on 78 playing industrial library units
If your cartridge looks like this and is playing 78's
Select These Needles
Pair of 2 mil Sapphire Needles for 78 play $25
|

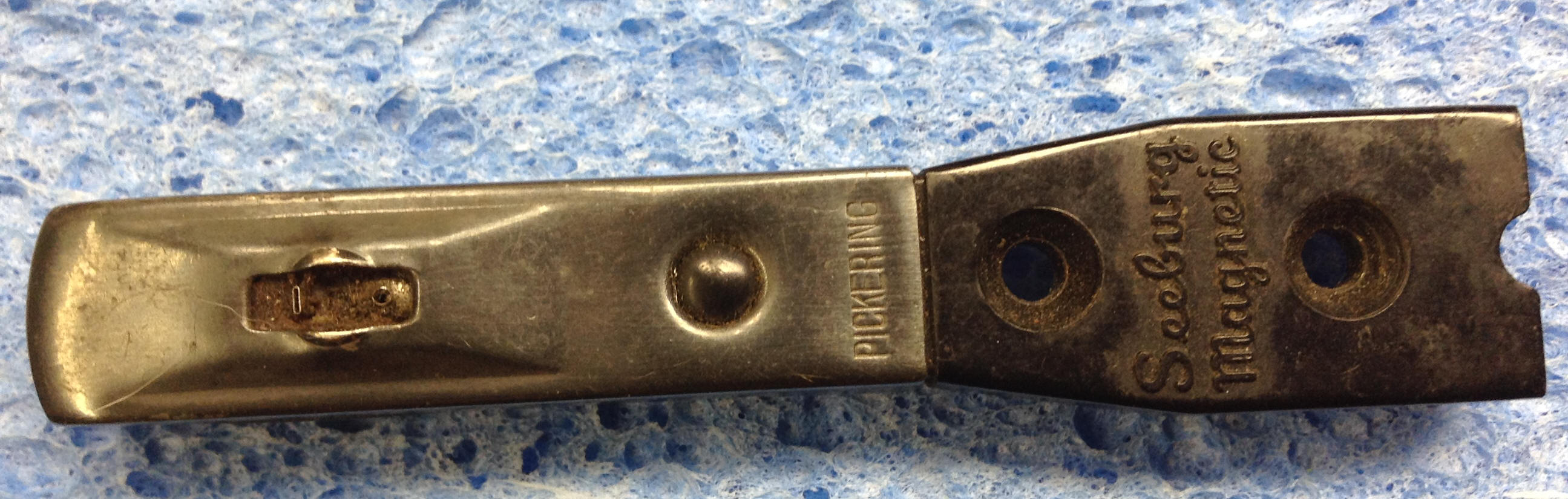

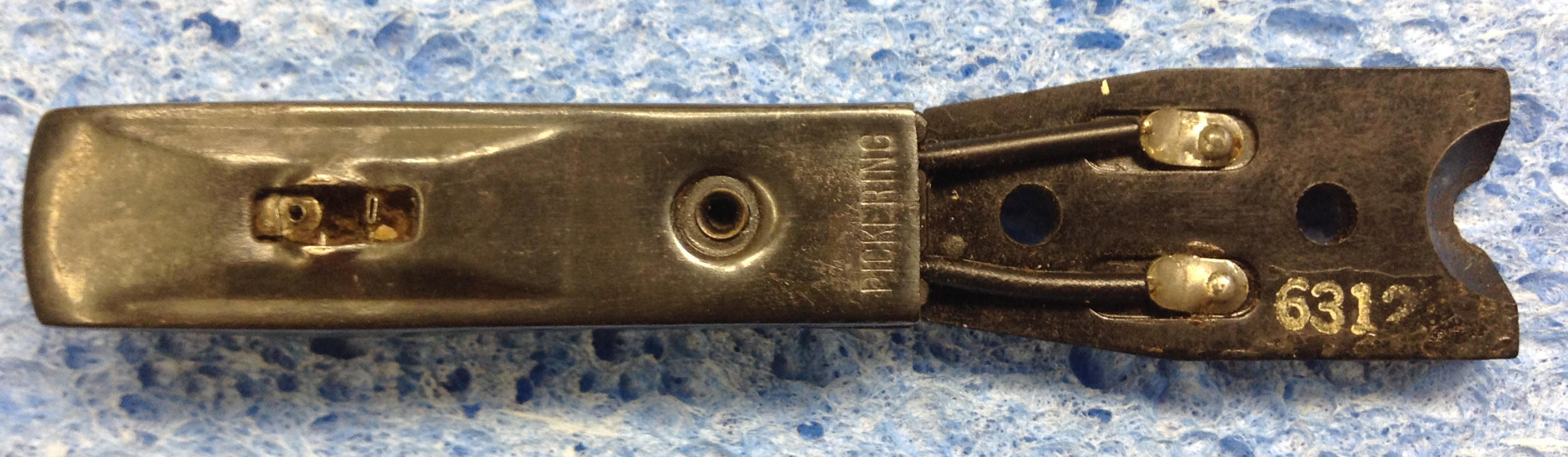

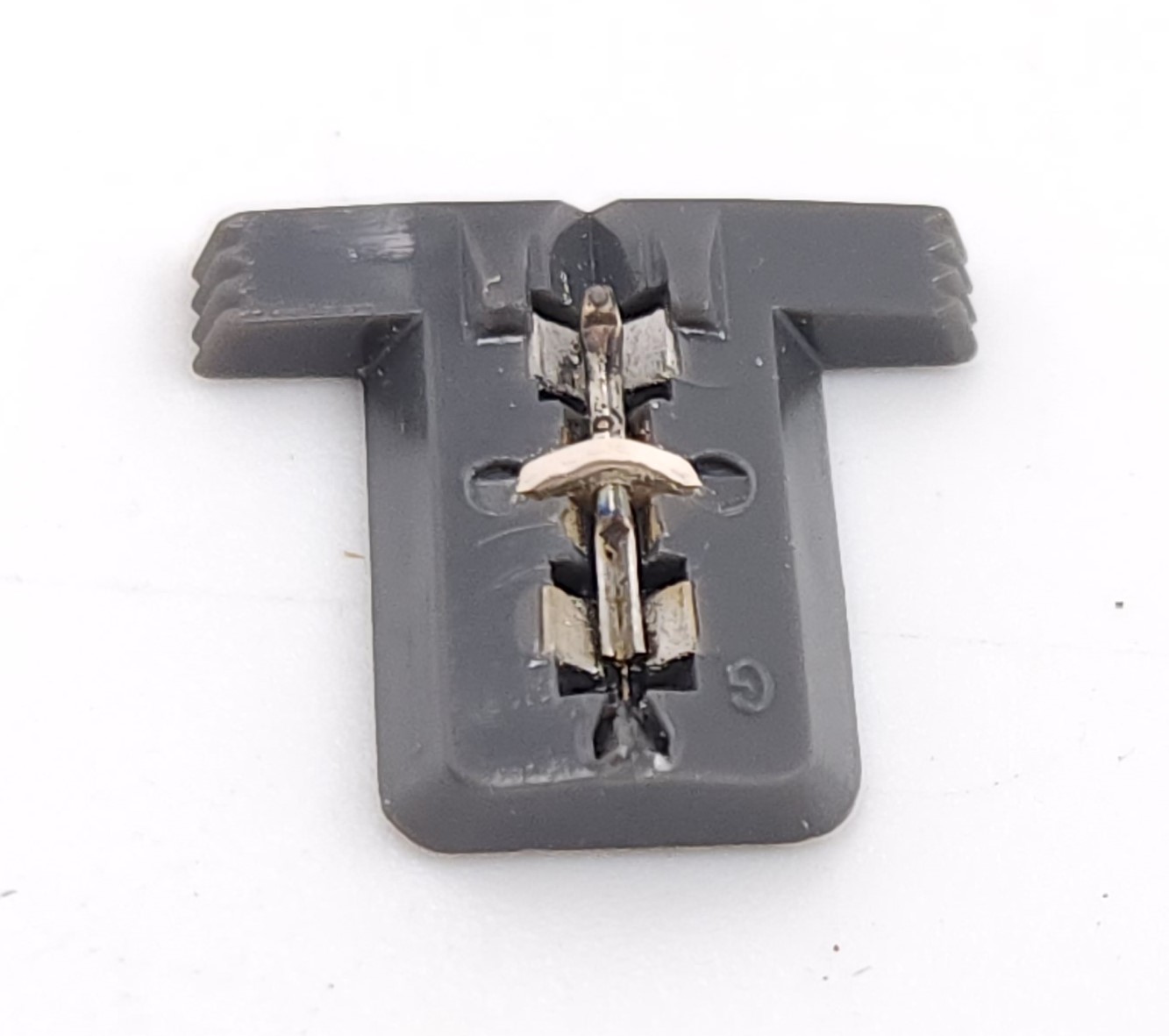

Pickering Mono Blackhead 100-A
This type Pickering Mono Blackhead cartridge was original
on all M100-A models
If your cartridge looks like this and your A is playing
78's
Select this needle

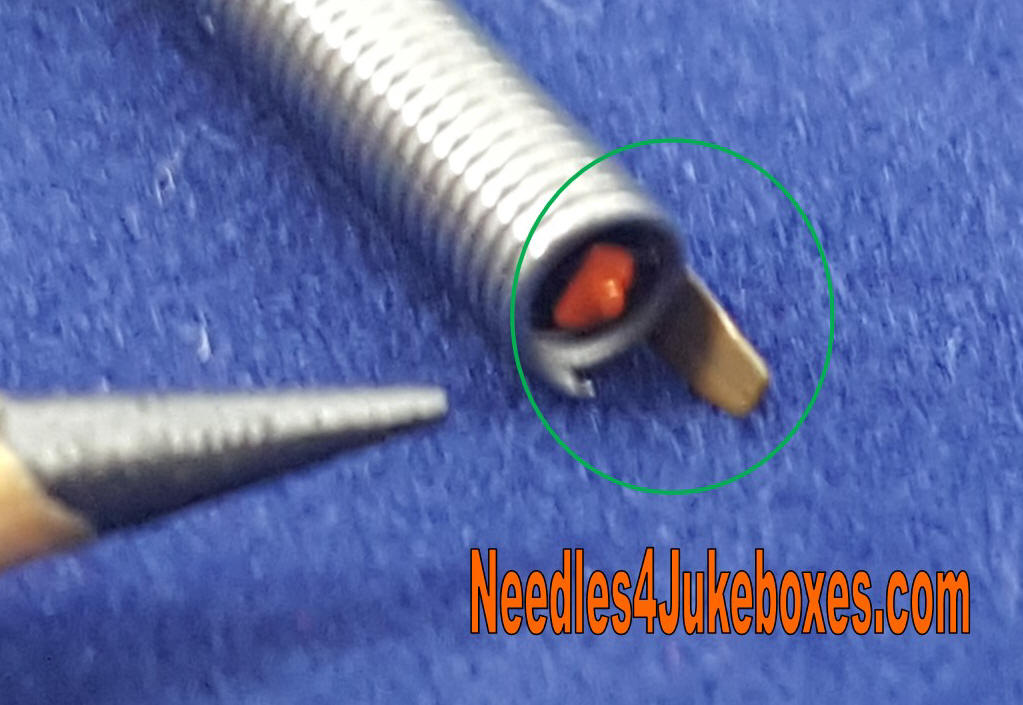

Each needle comes preloaded in it's own
handy installation tool

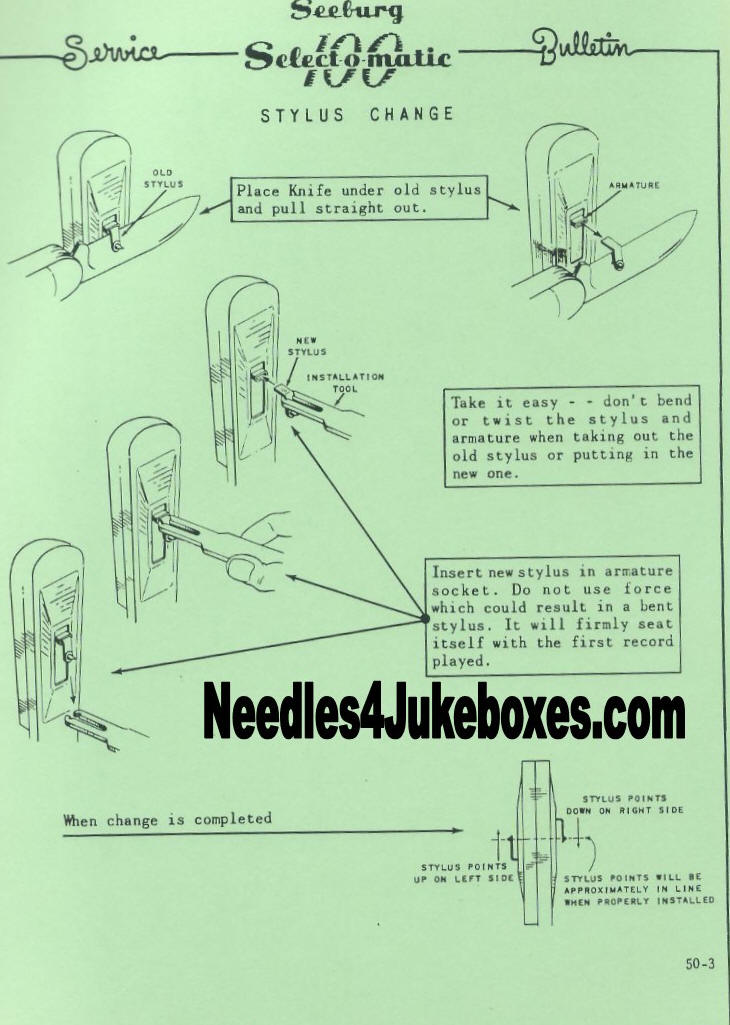

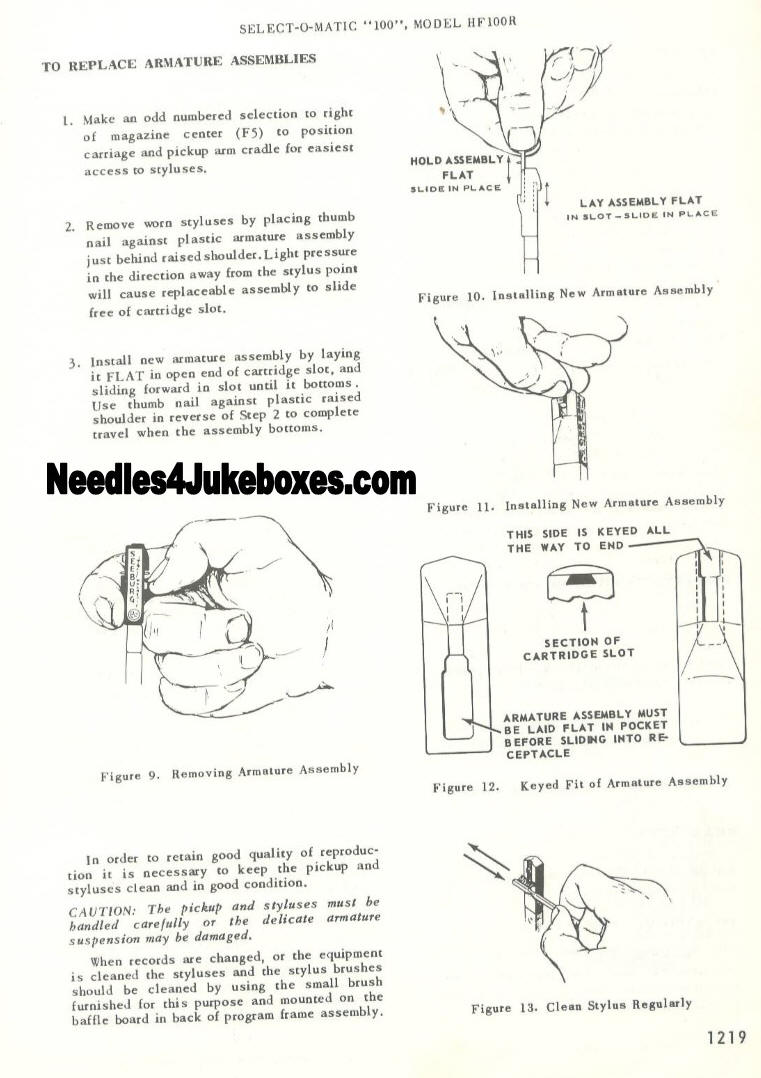

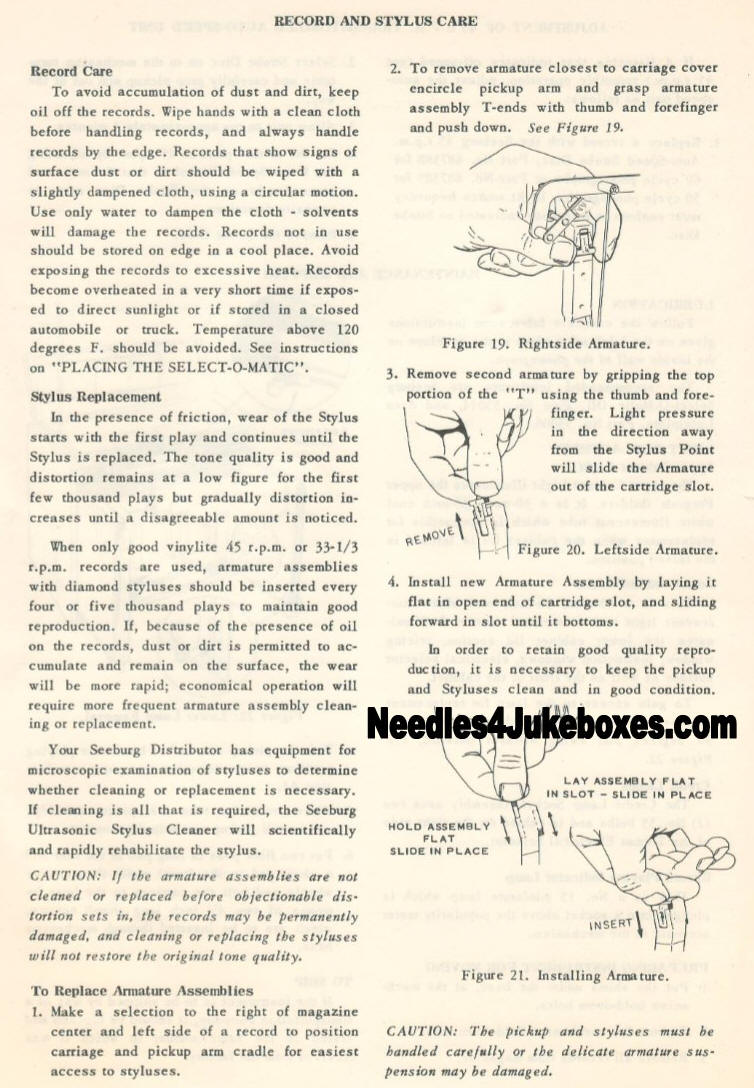

How to install your needles
If your 100-A has been converted to 33's or 45's
and has a Blackhead cartridge select the needle
listed below for the 100-B Blackhead.

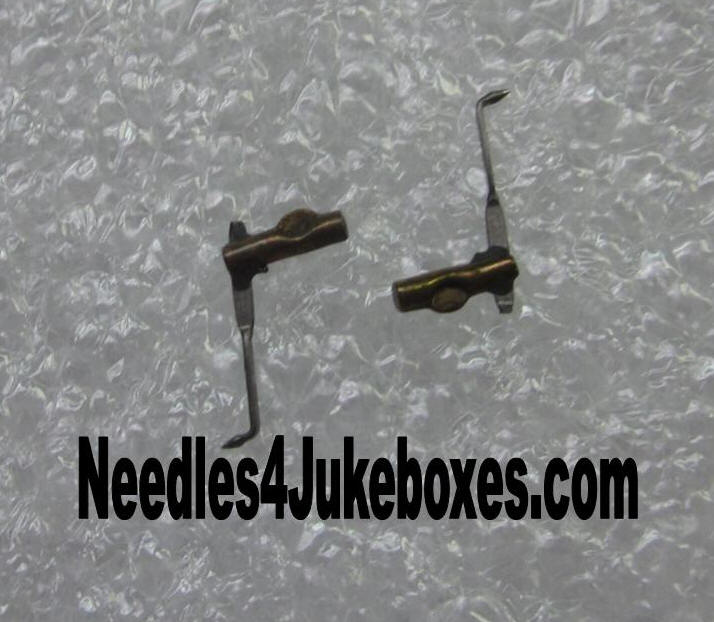

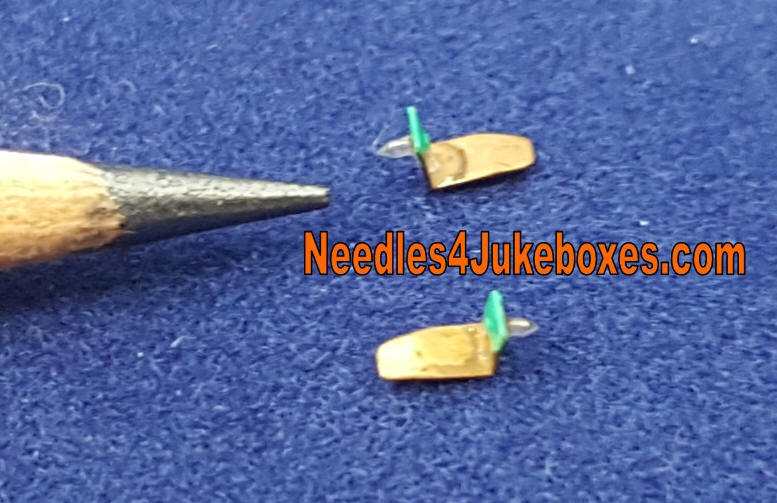

Exact Replacement, 2 mil sapphire tip for 78 RPM records only, Sold in Pairs $25
|

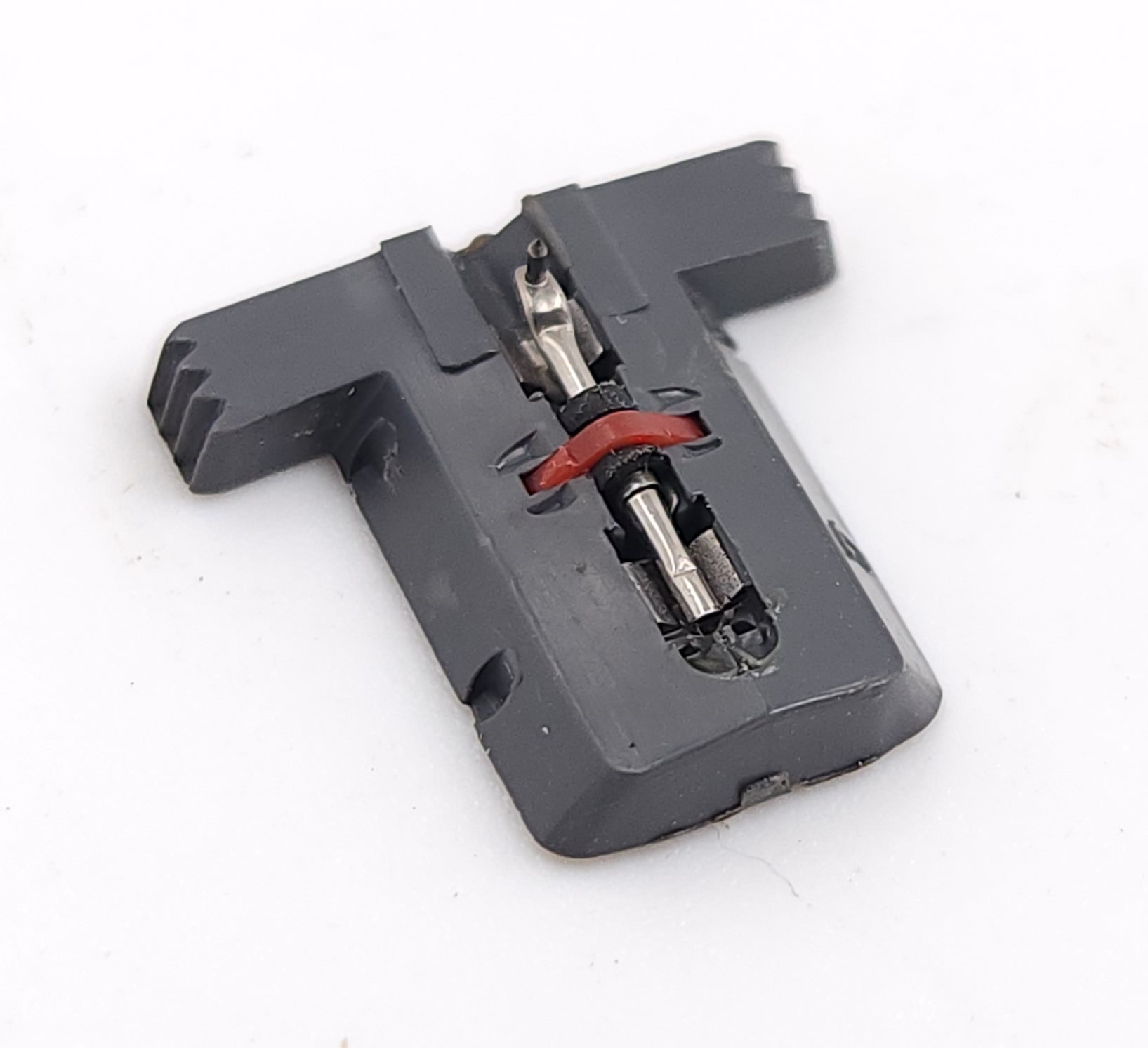

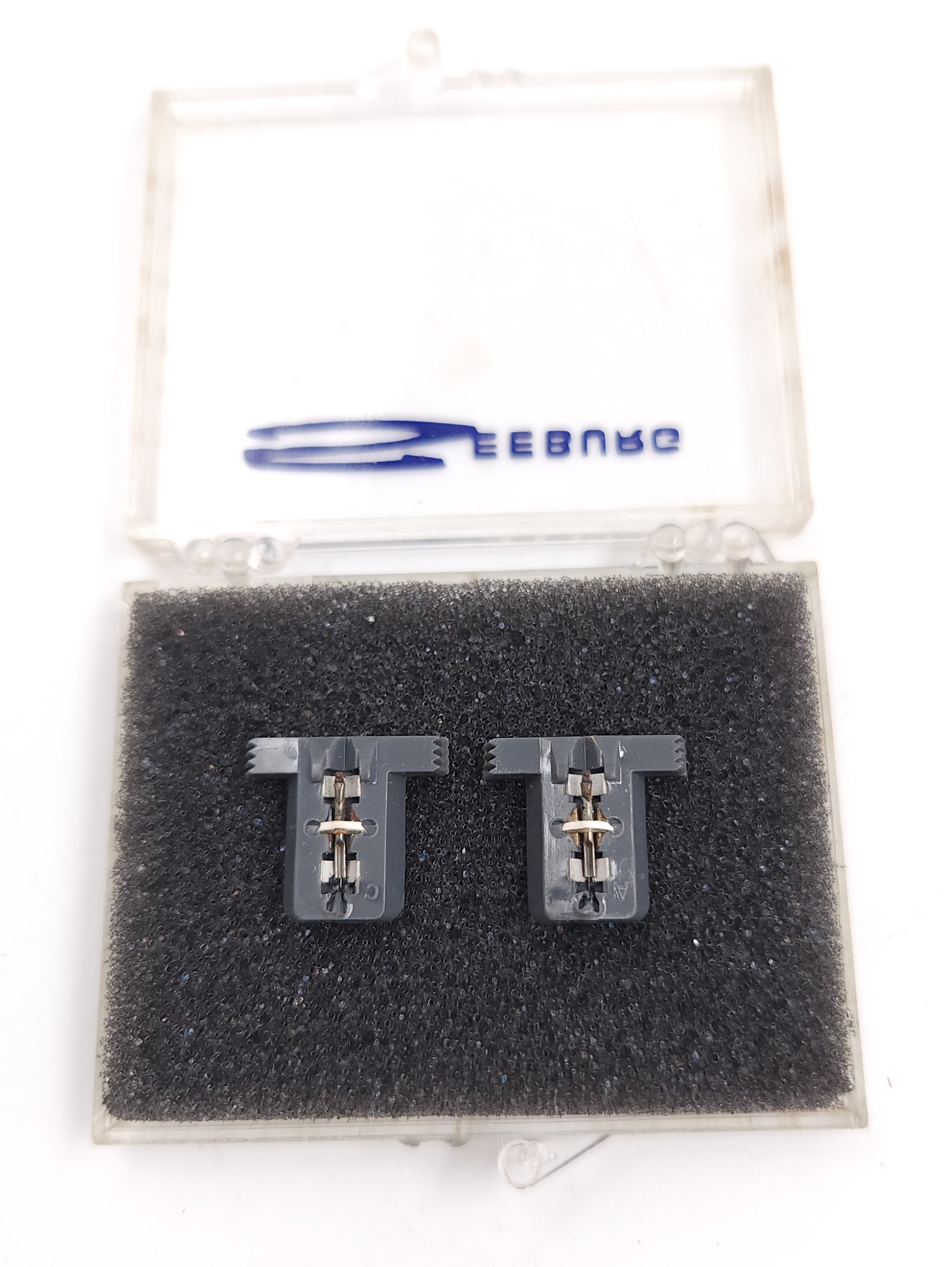

Pickering Mono Blackhead 100B-201
This Pickering Mono Blackhead cartridge was original
equipment on all 100-B models and can often be found on the M100-C - 201 models
If your cartridge looks like this
This is your needle
Each needle comes preloaded in it's own
handy installation tool
How to install your needles

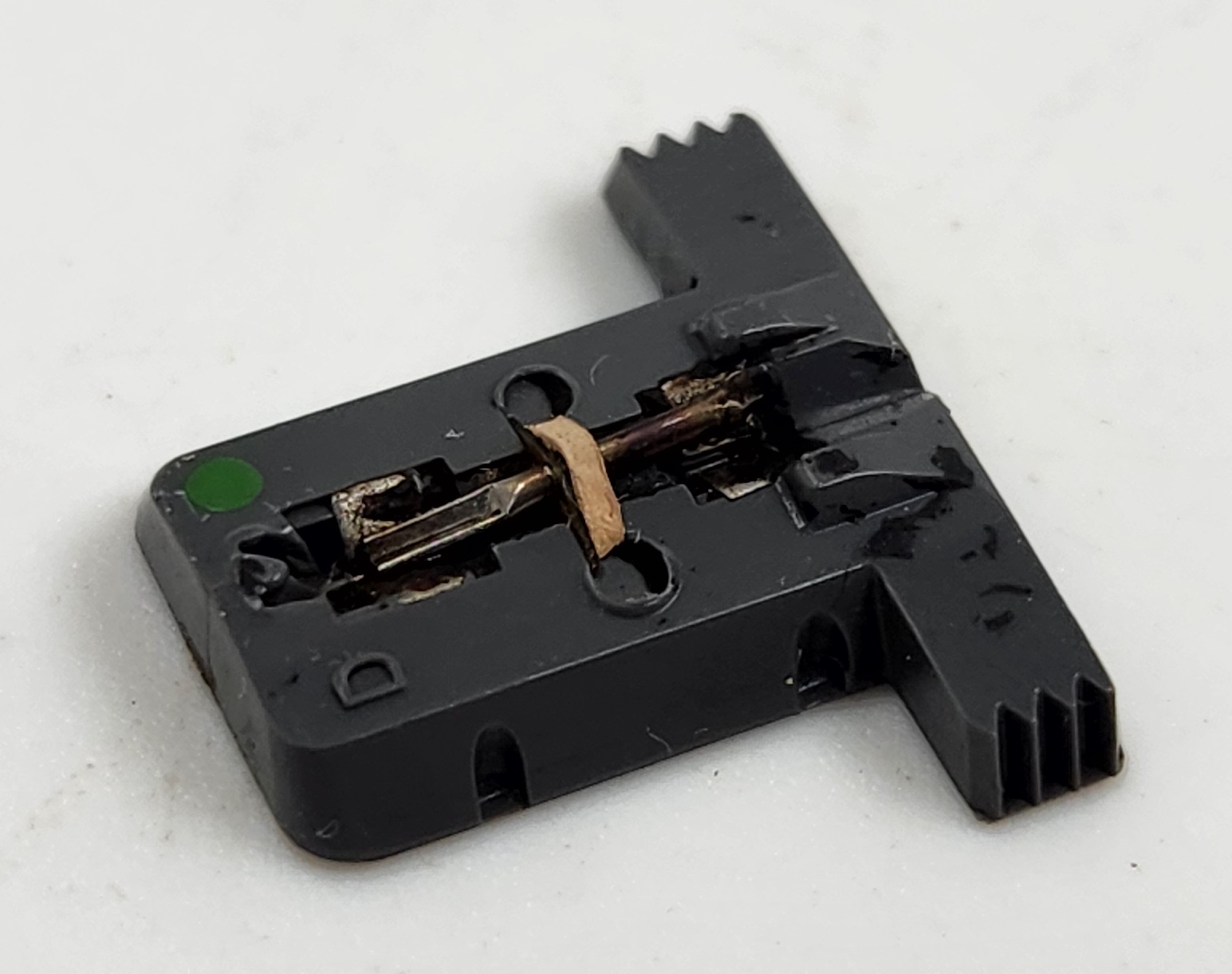

Exact Replacement, .7 mil sapphire tip, stereo compliant, 45
or 33 1/3 RPM play
$25.00 per pair
|

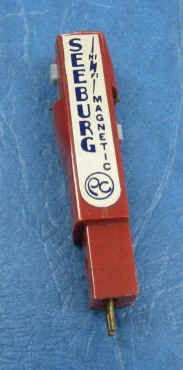

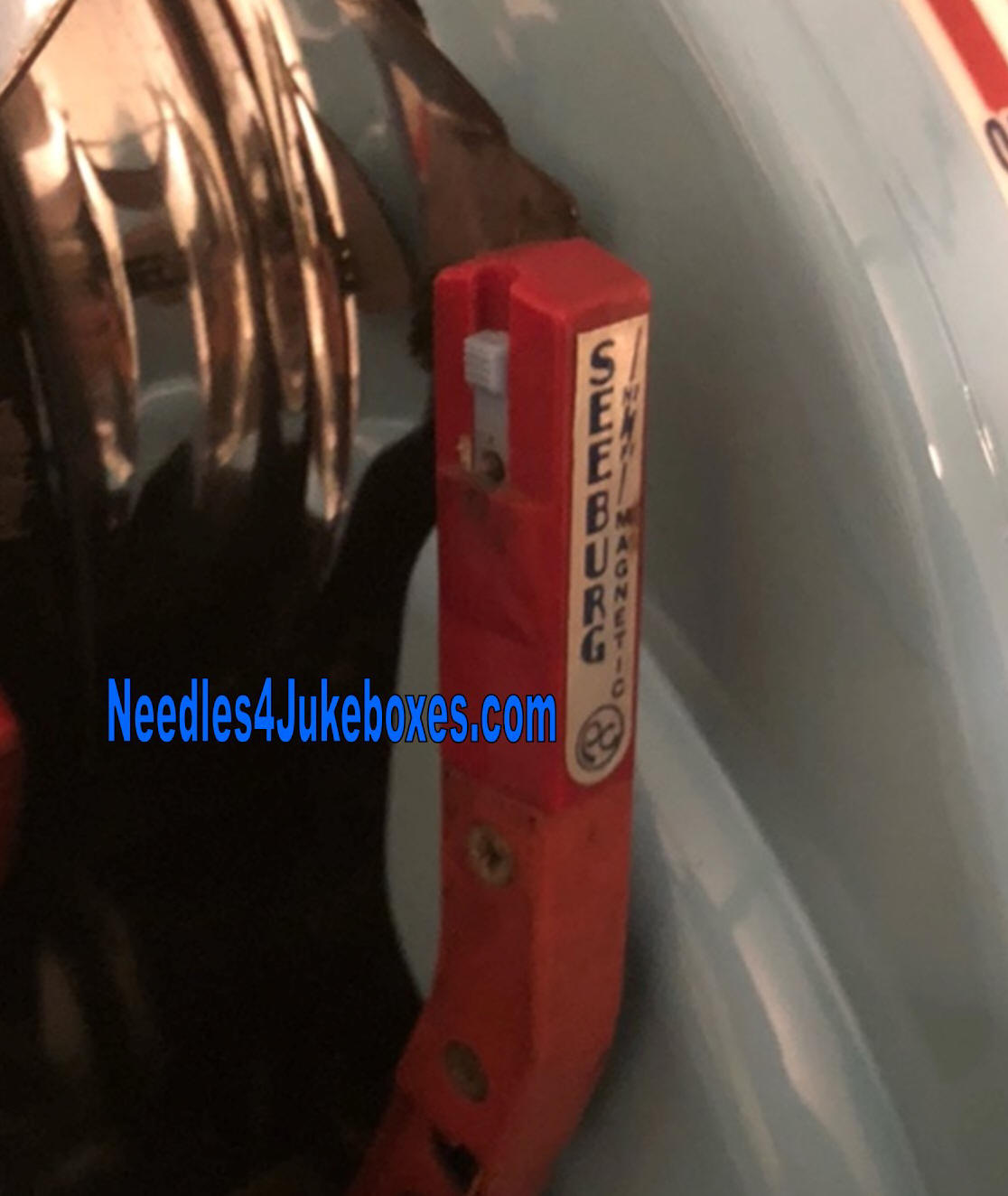

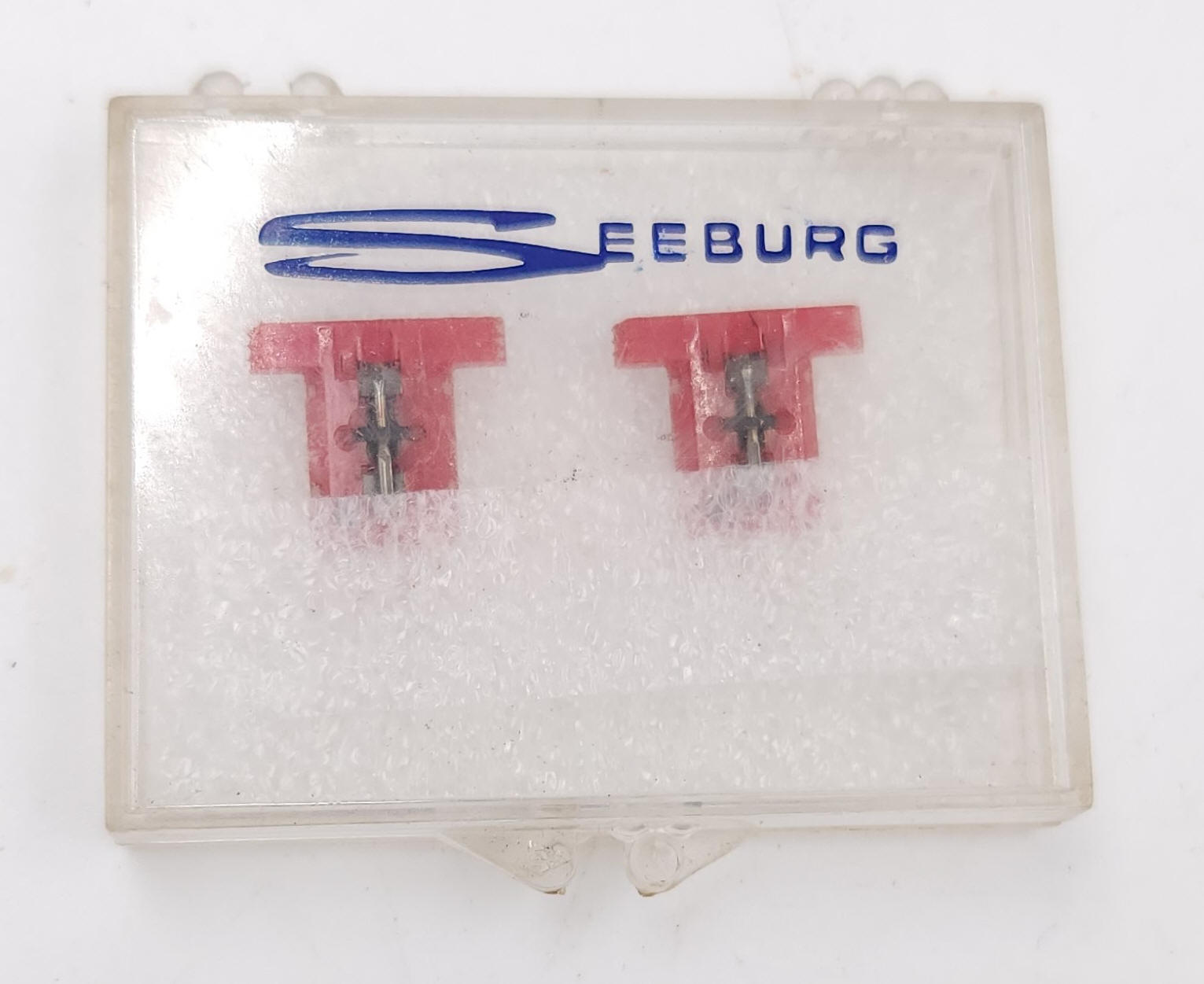

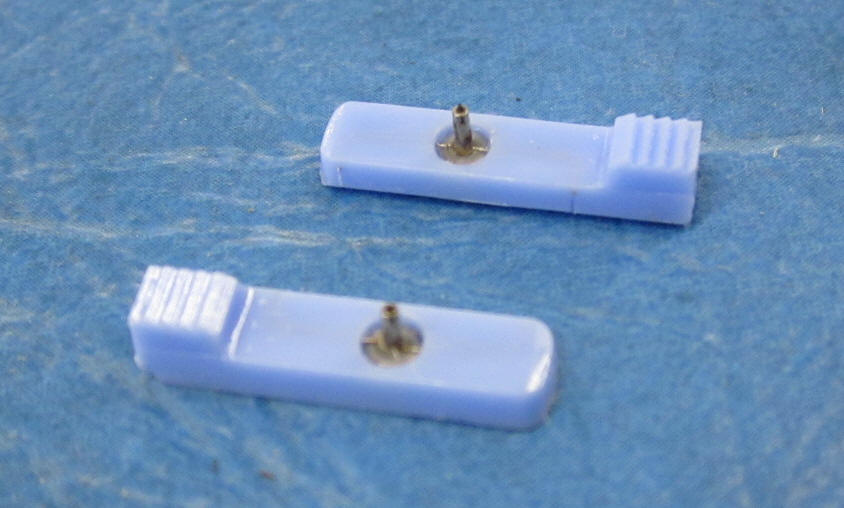

Pickering Mono Redhead
The Pickering Mono Redhead cartridge fits all mono /
HiFi Seeburgs from the 100-B thru the 201.
Also used in many of the Library Units (LU1-3).
If your cartridge looks like this
Then these are your needles
.7 mil - Stereo Compliant - Diamond Needles $149.99
per pair
Out of Stock - More
Expected Soon!
|

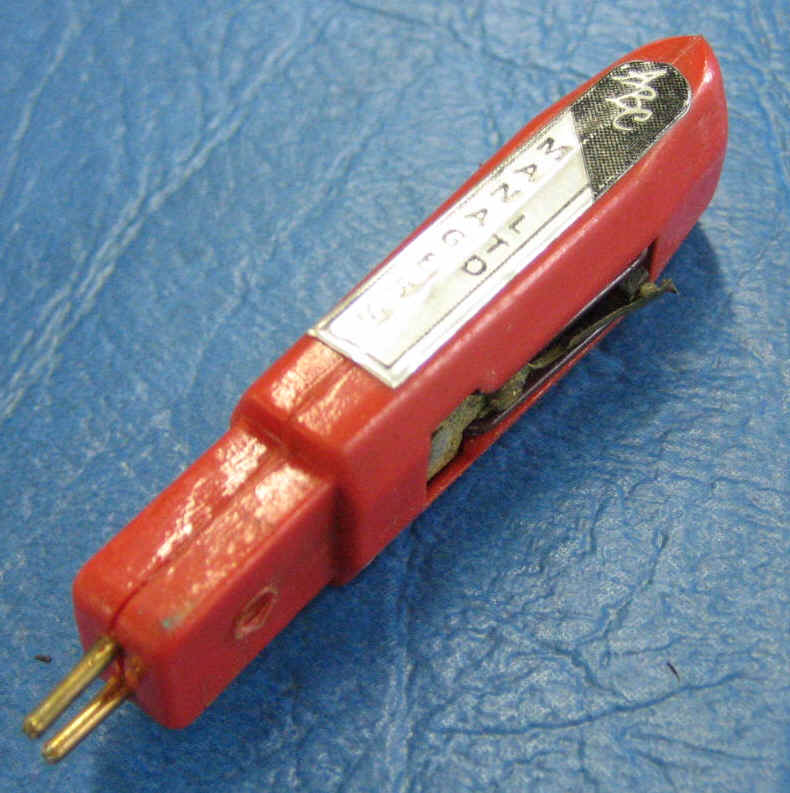

Varco, Atlas, Arista & ABC
The Varco, Atlas, Arista and ABC aftermarket
replacements cartridges were all produced to replace the mono black and
redhead cartridges originally found on Seeburg 100B-201 models.
If your
cartridge looks like one of these:
Then you need these needles

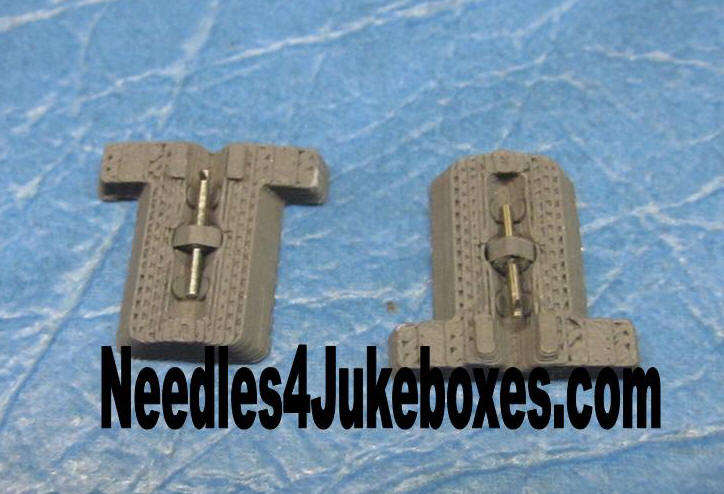

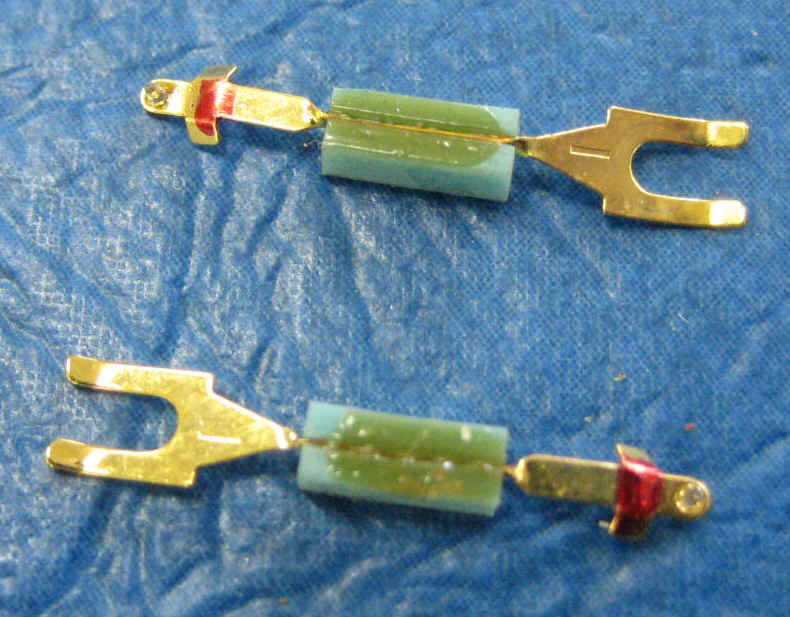

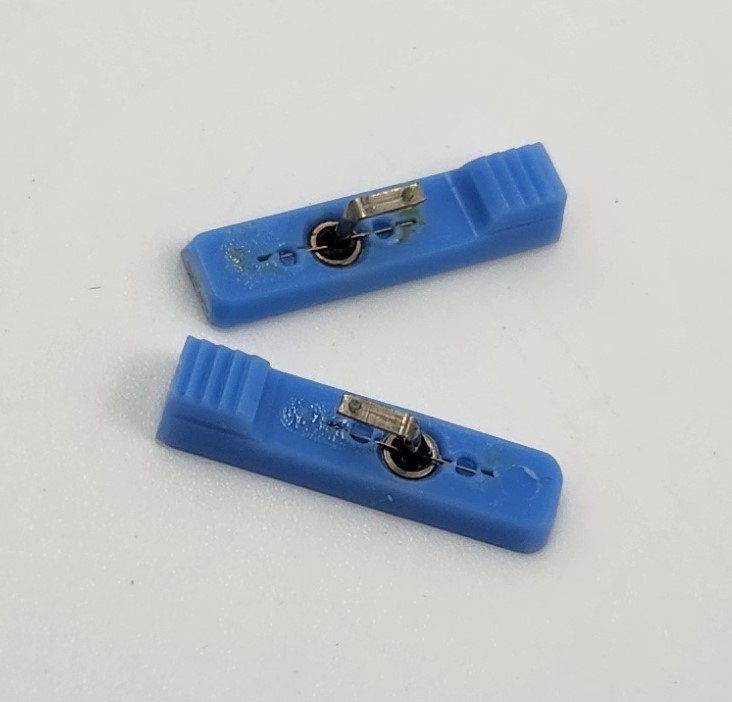

.7 mil sapphire tip - stereo compliant With Blocks $15 per pair
.7 mil diamond tip - stereo compliant With Blocks $20 per pair
.7 mil stereo compliant Diamond tip Without Blocks $25.95 per pair
Currently Out of Stock
.7 mil stereo compliant Sapphire tip Without Blocks $19.99 per pair
|

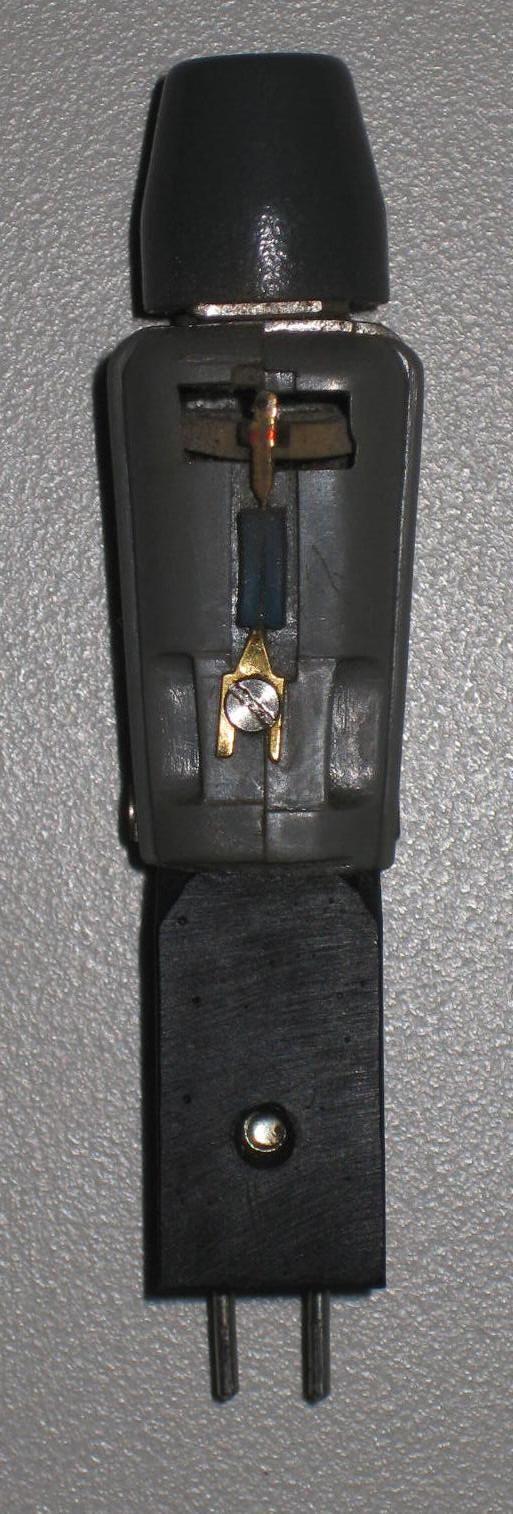

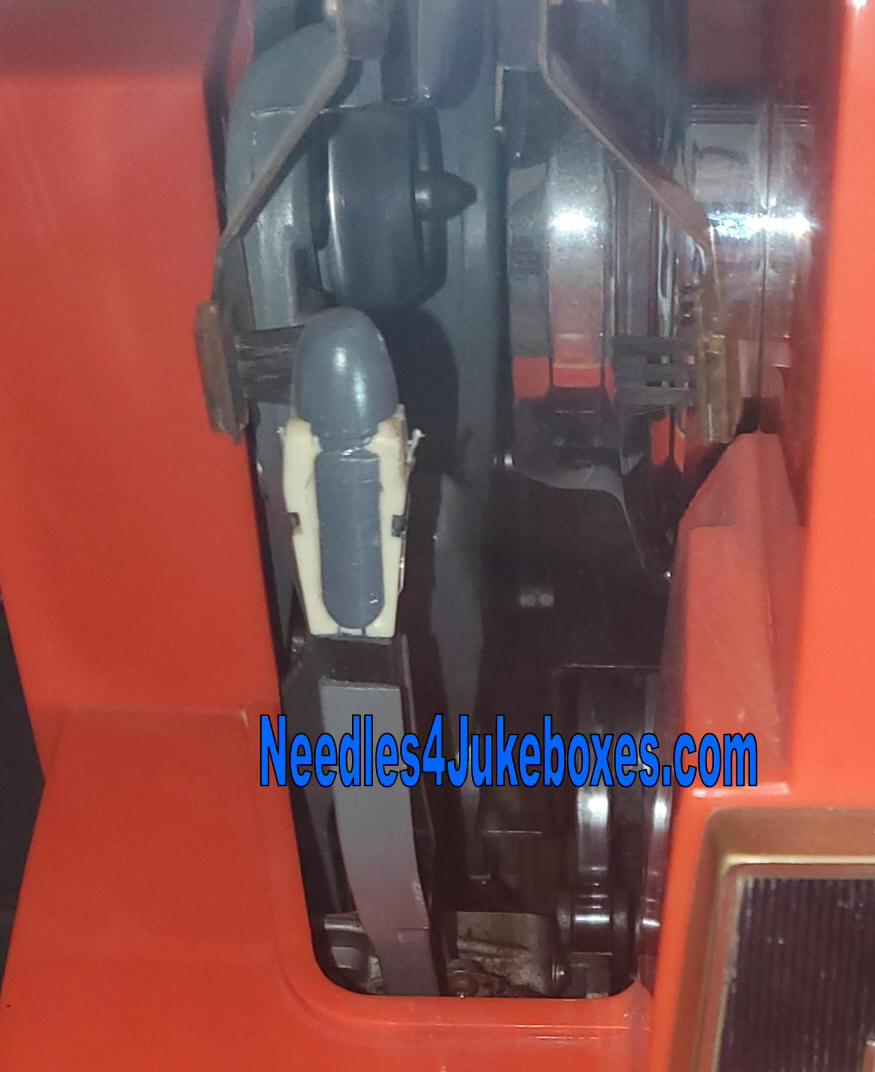

Thorpe / DS: 100A
The gray and white
"DS" cartridge, is also known as the "Thorpe".
This
version was built
as a replacement for the Seeburg Mono Blackhead cartridge used on 100-A
model.
If your cartridge look like this and your 100A is playing 78's
Then this is the correct replacement needle
If your 100-A has been converted to 33's or 45's select the needle
listed in the frame below
One side (3 mil) tipped for original 78's, the other (.7 mil tip - stereo
compliant) for 45/33 or new 78 play
Sold in pairs $22.99
|
Thorpe / DS: 100B-201
This white and gray cartridge is known as the "DS" or "Thorpe".
This
version was built
as a replacement to the Seeburg Mono Blackhead and Redhead cartridges used on
100-B through 201 models.
If your cartridge look like this
Then this is the correct replacement needle

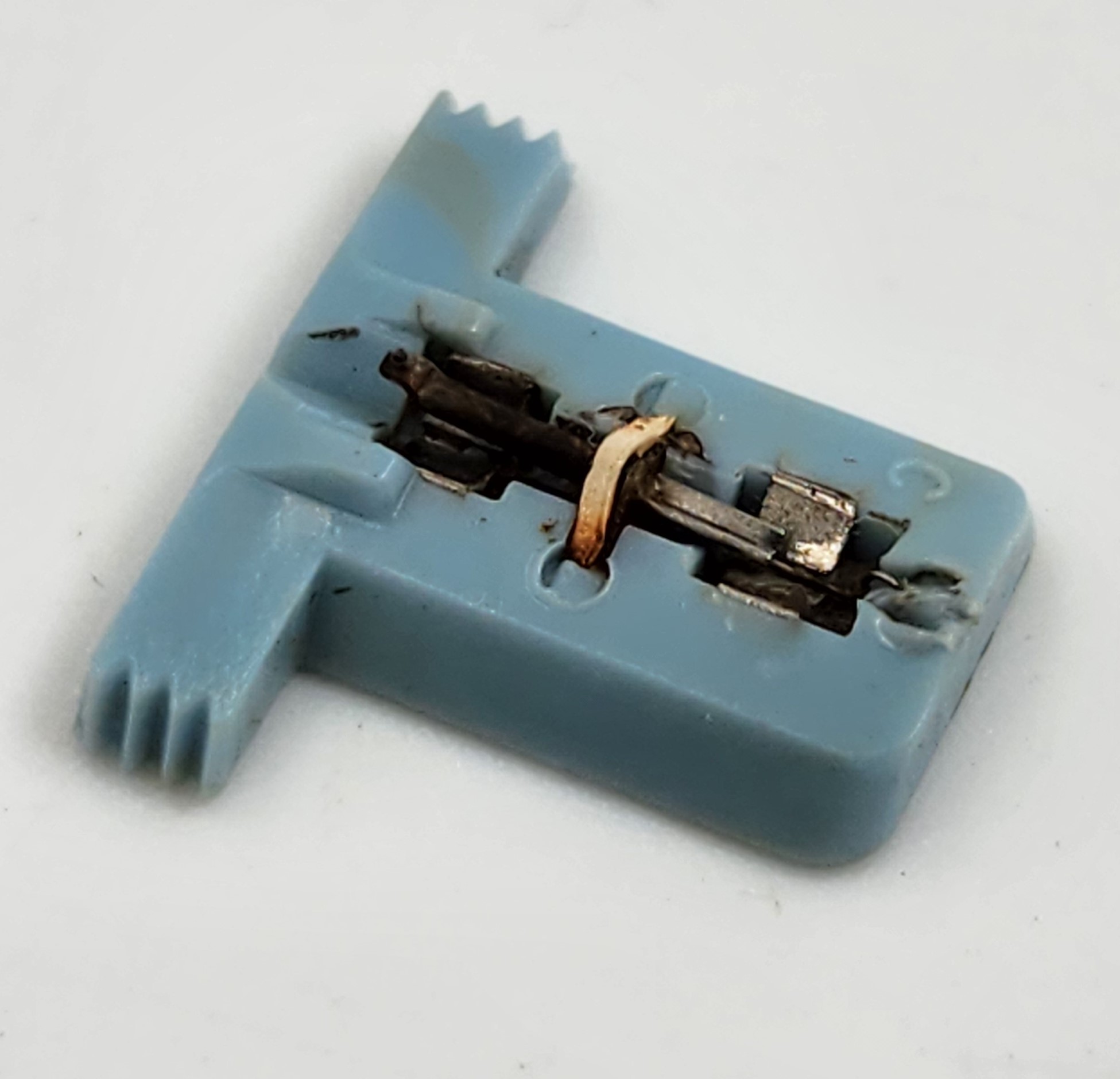

.7 mil Diamond tipped for use with 45 RPM Records, stereo compliant
Sold in pairs, $34.99
|

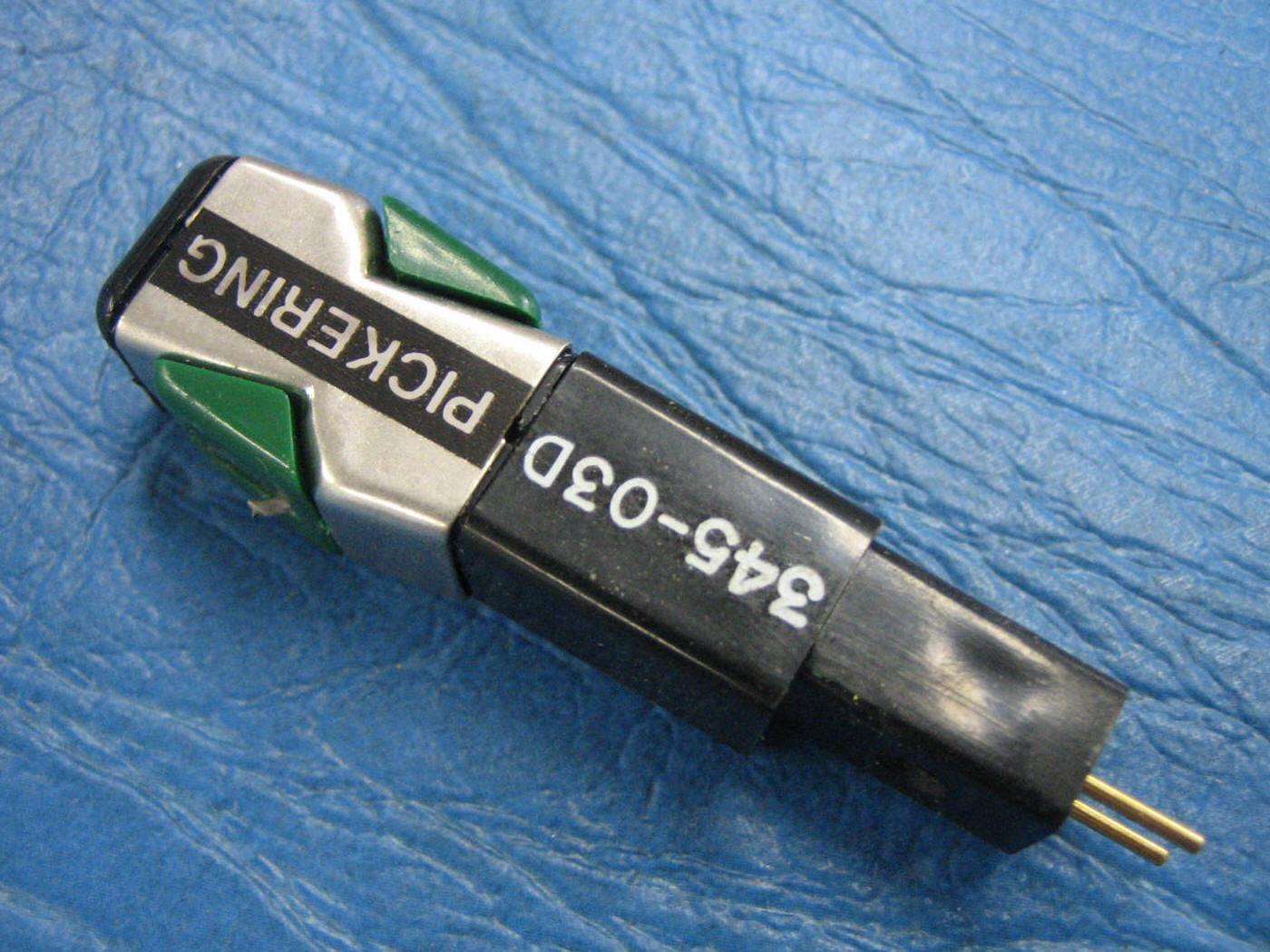

Pickering 345-03D
The #345 was built
as a replacement to the Seeburg Mono Blackhead and Redhead cartridges used on
100-B through 201 models
If your cartridge look like this
Then these are your needles.
.7 mil Diamond tipped - Stereo compliant - optimum tracking
pressure 3-4 grams
Perfect fit &
exact replacement for all Green, Tan/Brown needles

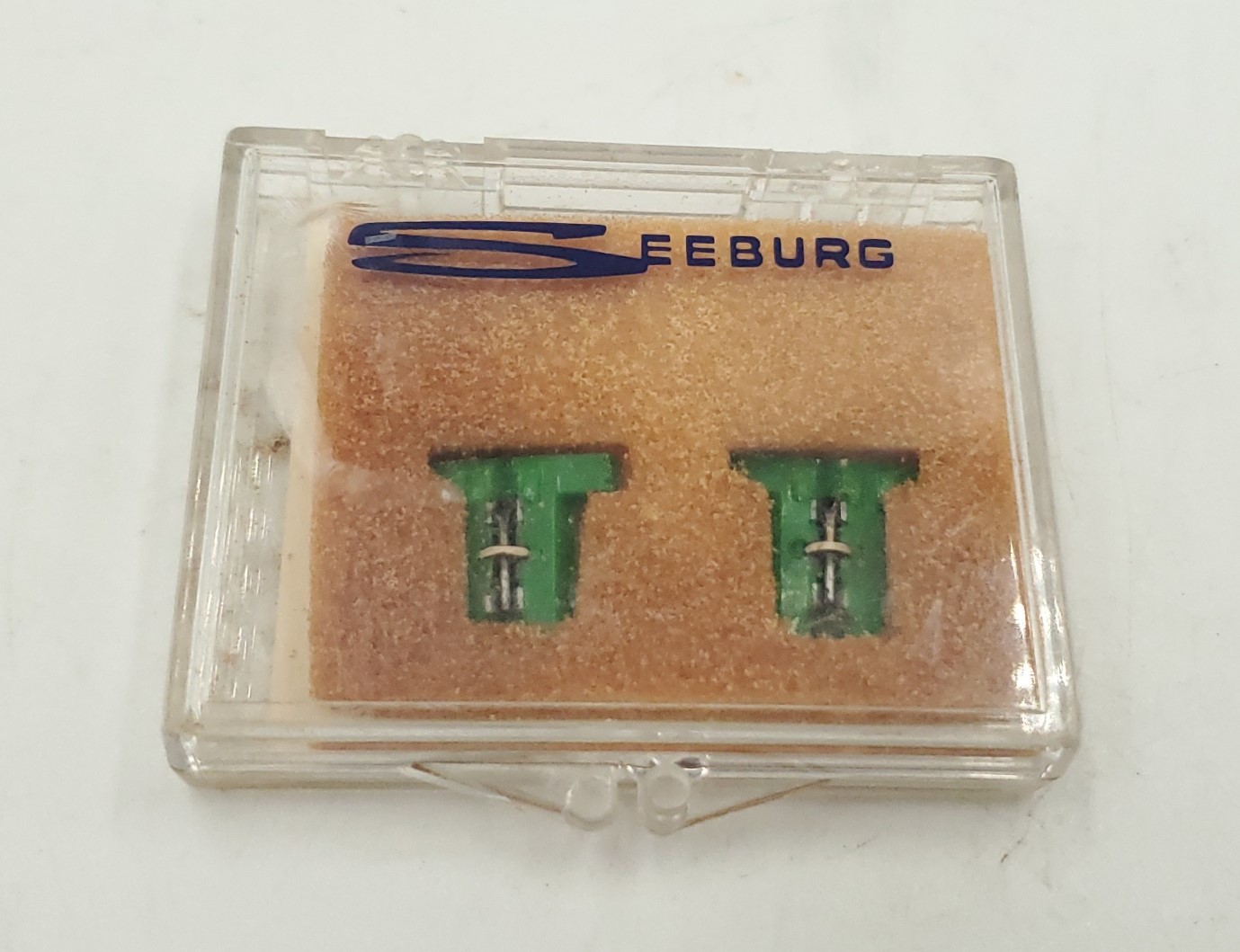

Green 340D needles have been
discontinued by the factory - Use the Yellow Needles down page
I have one single green
needle available - Inquire if interested
|

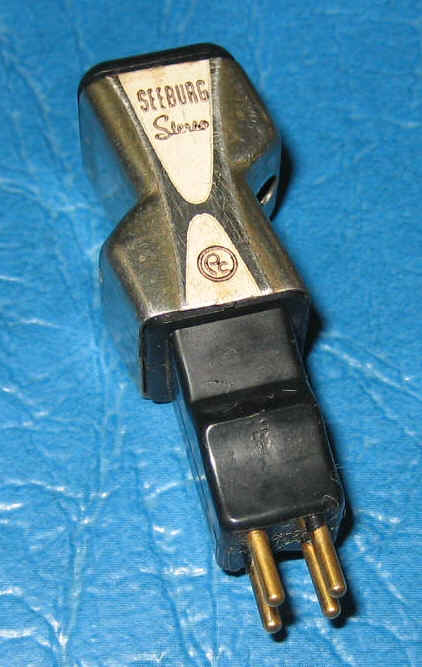

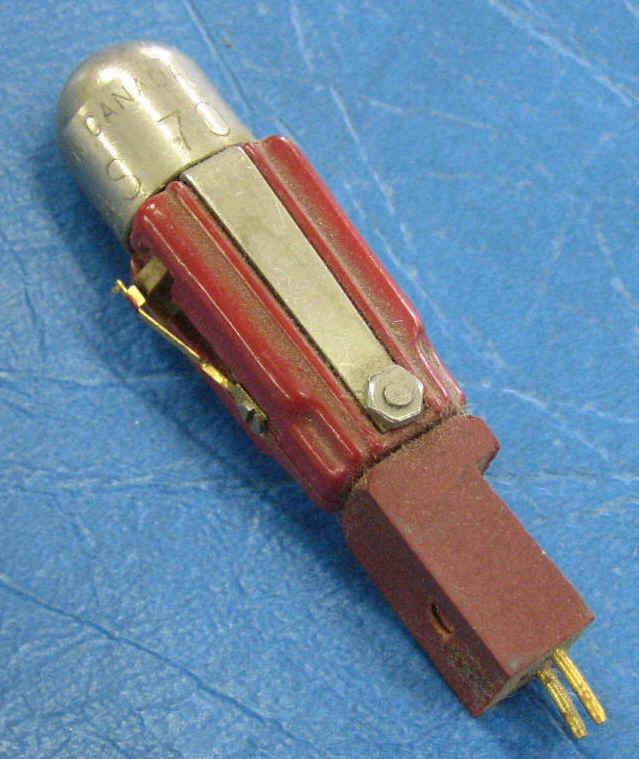

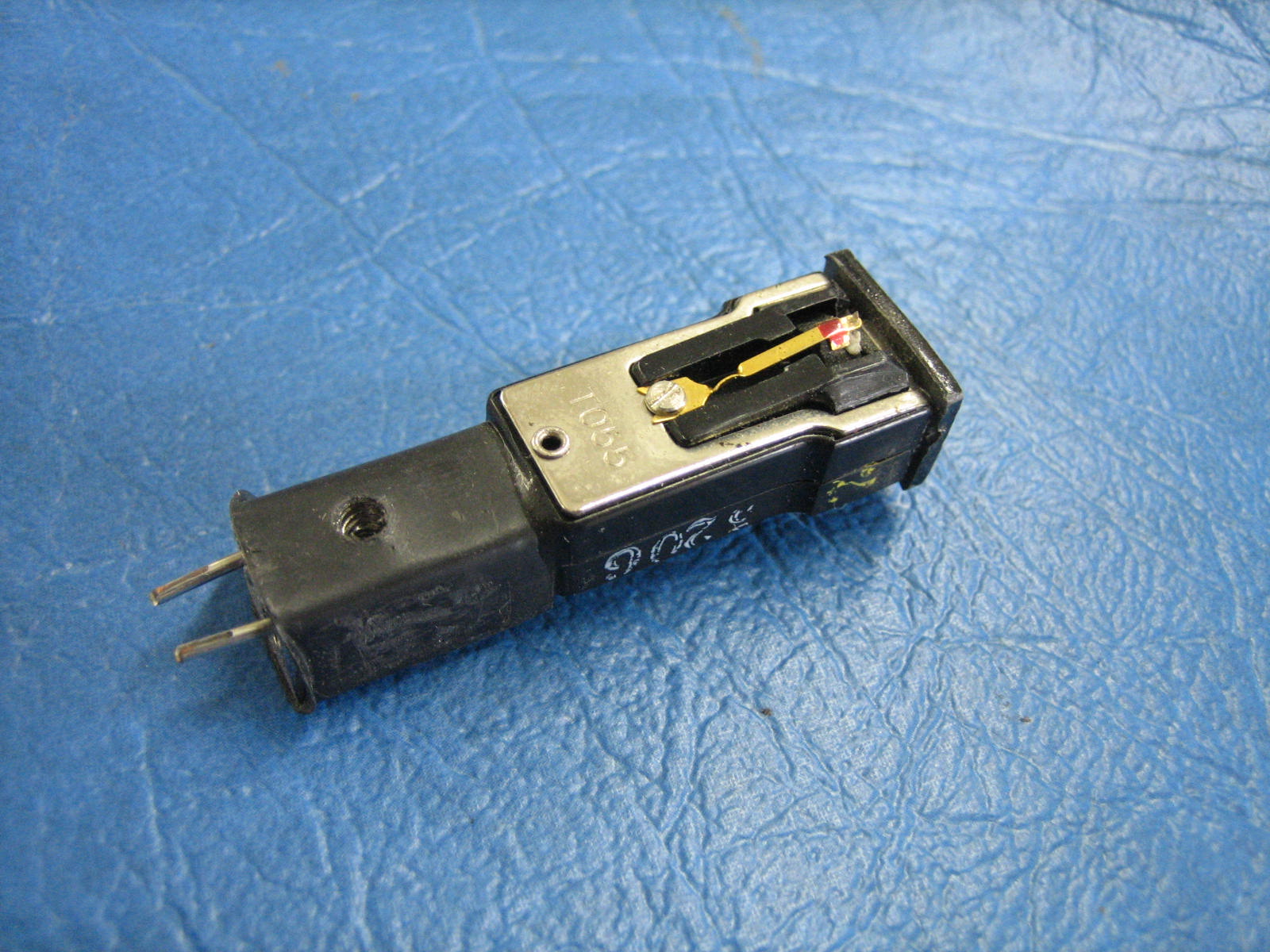

Pickering 370
Stereo Redhead/Blackhead
The Pickering Stereo Redhead & Blackhead cartridges
fit Seeburg: 220, 222, Q100/160, AQ100/160, Y100, AY100/160, DS100/160,
LPC-1, LPC-480, APFEU & PFEAU models. Also some earlier mono models with
updated tone arms.
It can also be found in the Model 1000 BMS & BMC
(Background Music Systems) & possibly some LU's (Library Units).
If your cartridge looks like this
Then these are the correct replacement needles

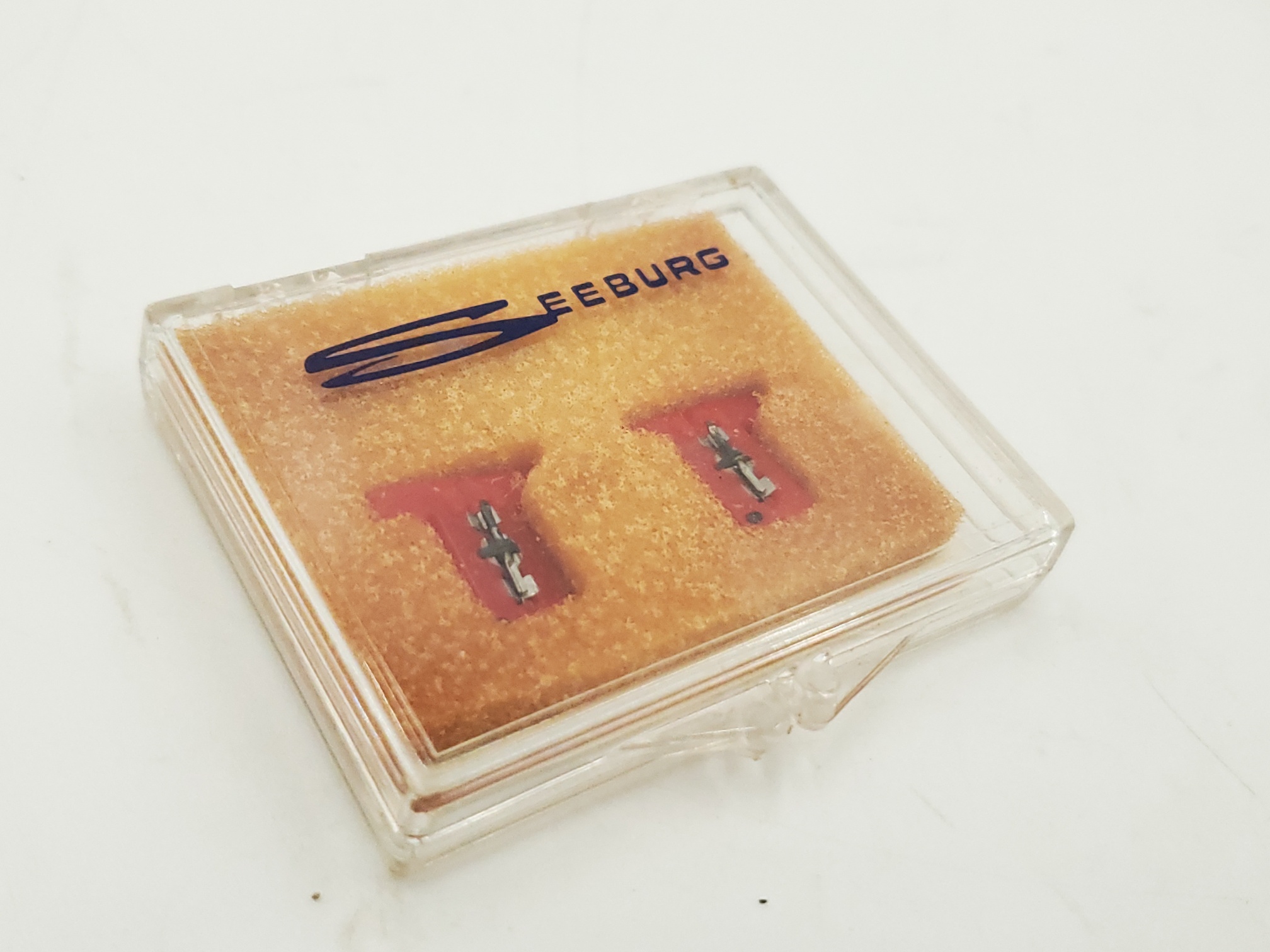

Pair of Diamond Pickering T
Needles
optimum sound quality at a
tracking pressure in the range of 2-5 grams
Out of Stock
|

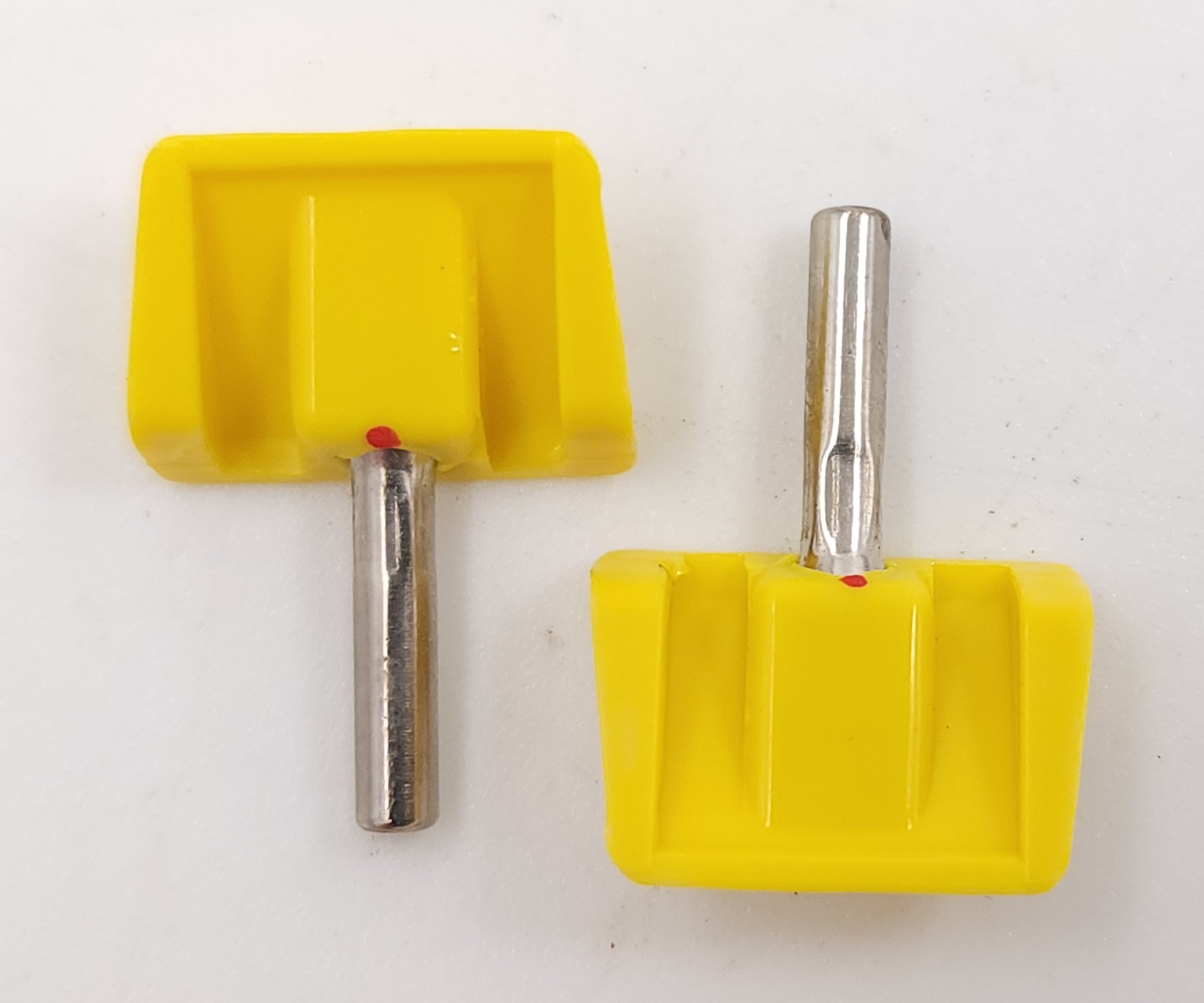

Pickering
340D - 160 Selection Models

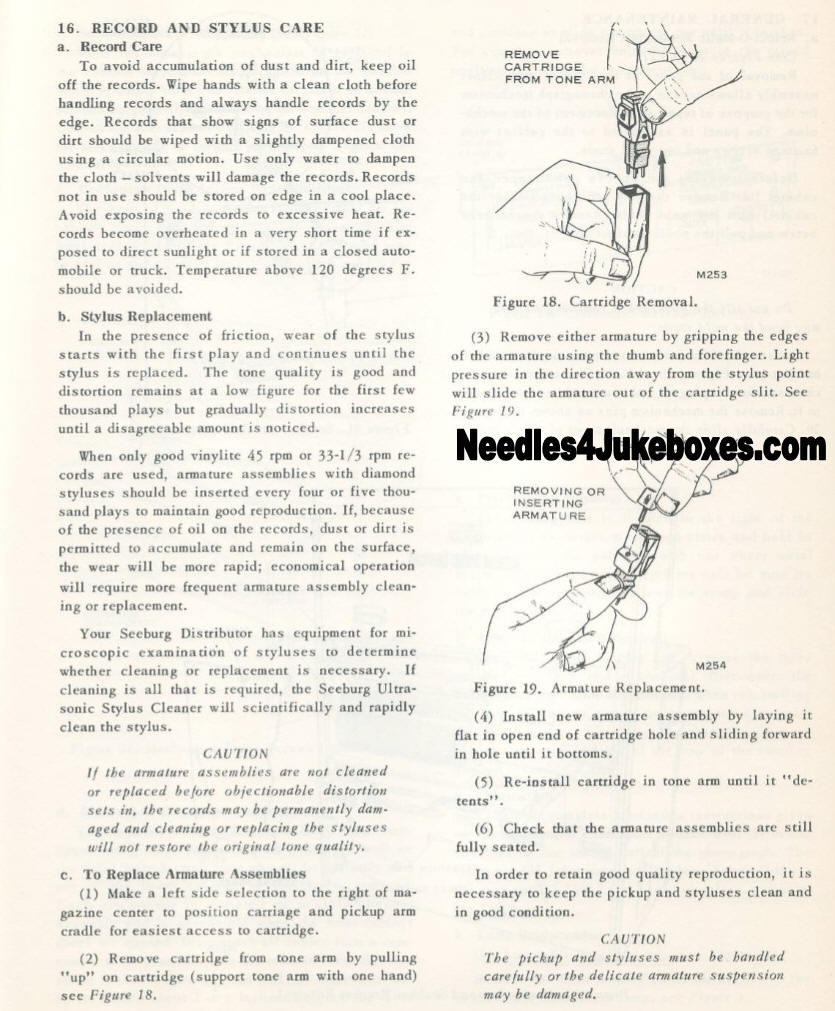

The Pickering 340D stereo cartridge fits
all 160 selection Seeburgs from 1967 on
SS-160, LS1, LS2, LS325, USC1, USC2, SPS160,
SPS2, STD1, SQS-160, STD2, SQS-2, STD3, STD4, SMC1/2/3, FC1-2 & VMC200
Also fits APU (Album Player Units),
AMS and HSC/6000 series (Home Stereo Console) Models
If your cartridge looks like this
Then these are your needles.

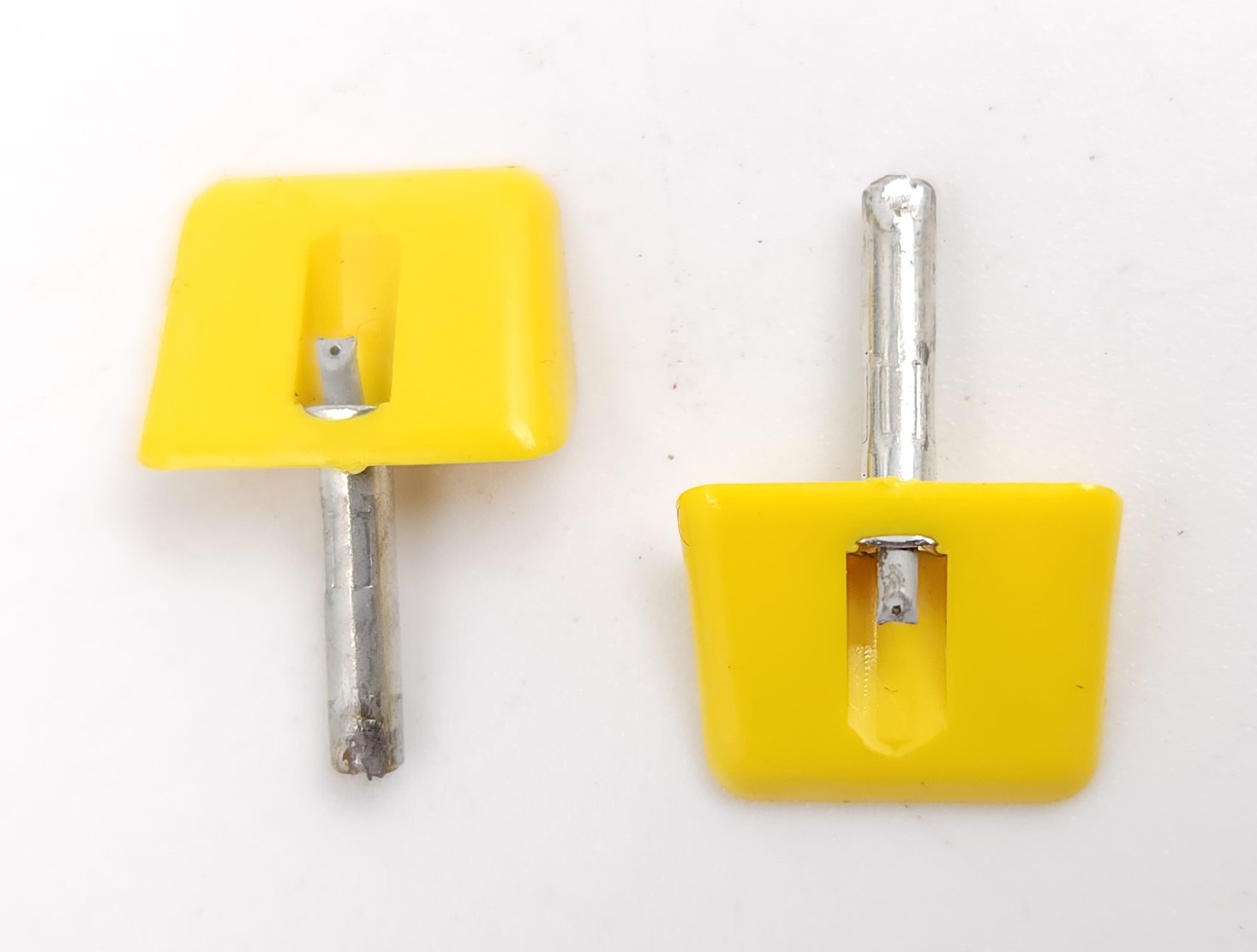

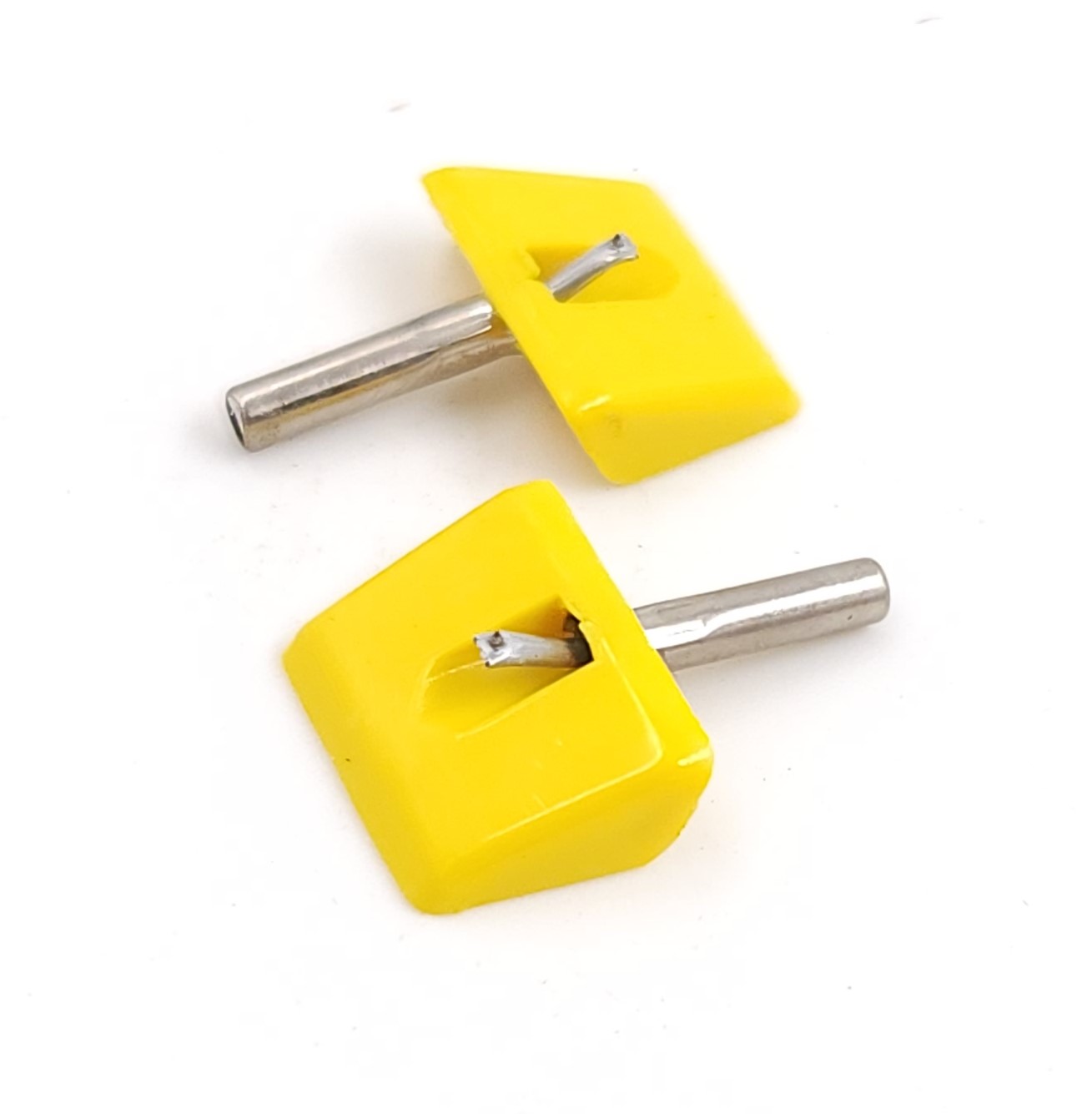

7 mil Diamond tipped - Stereo compliant - optimum
tracking pressure 3-4 grams
Perfect fit &
exact replacement for all Yellow, Violet and Red versions
$44.99 per pair
|

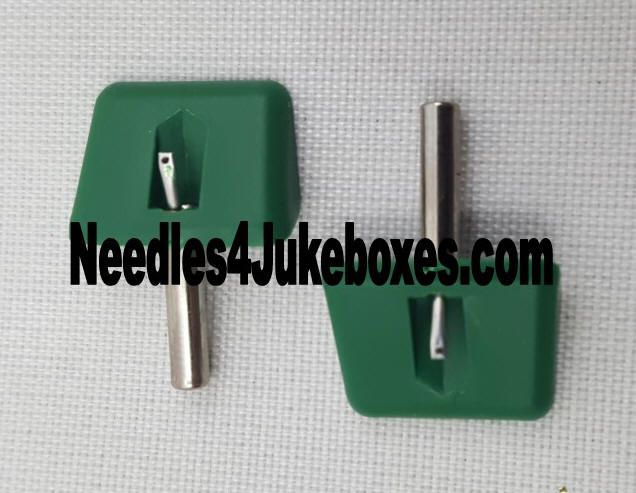

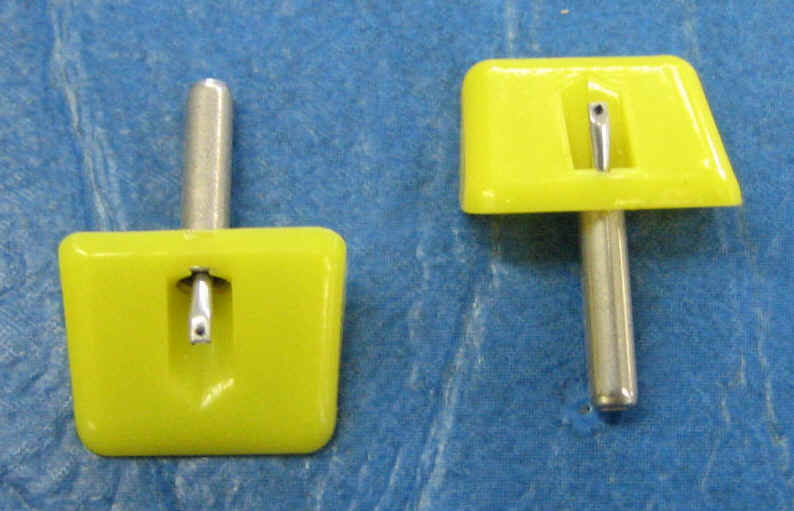

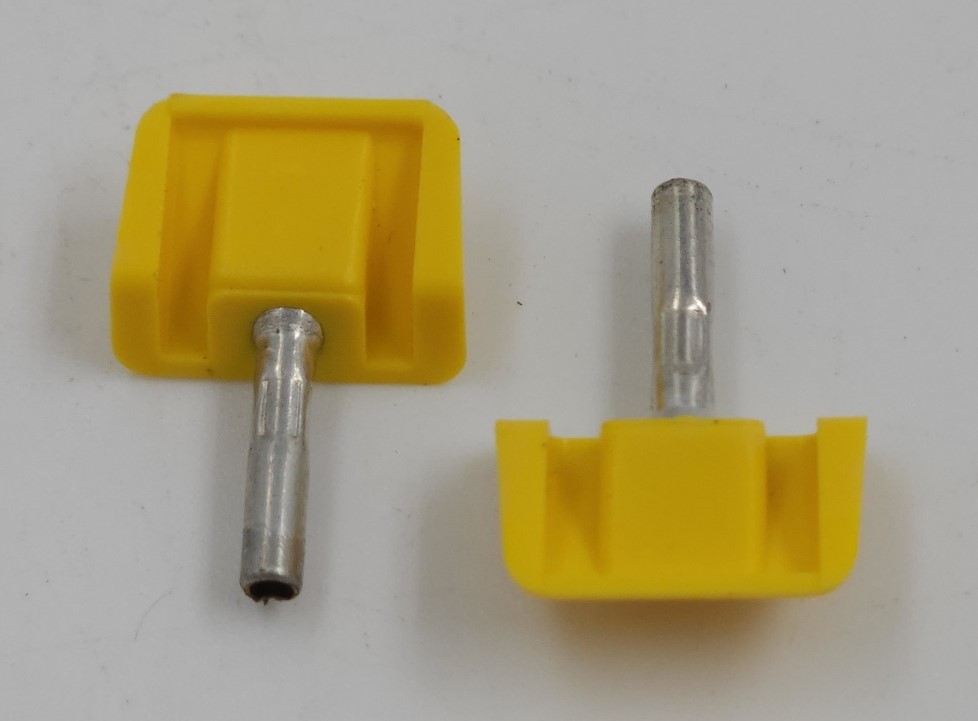

Pickering
340D - 100 Selection Models
The Pickering 340D stereo cartridge fits
all 100 selection Seeburgs from 1967 on
S100, SE100, SB100, SL100, 100-77D, 100-78D &
100-79M
If your cartridge looks like this
Then these are your needles.
.7 mil Diamond tipped - Stereo compliant - optimum tracking
pressure 3-4 grams
Perfect fit &
exact replacement for all Green, Tan/Brown needles

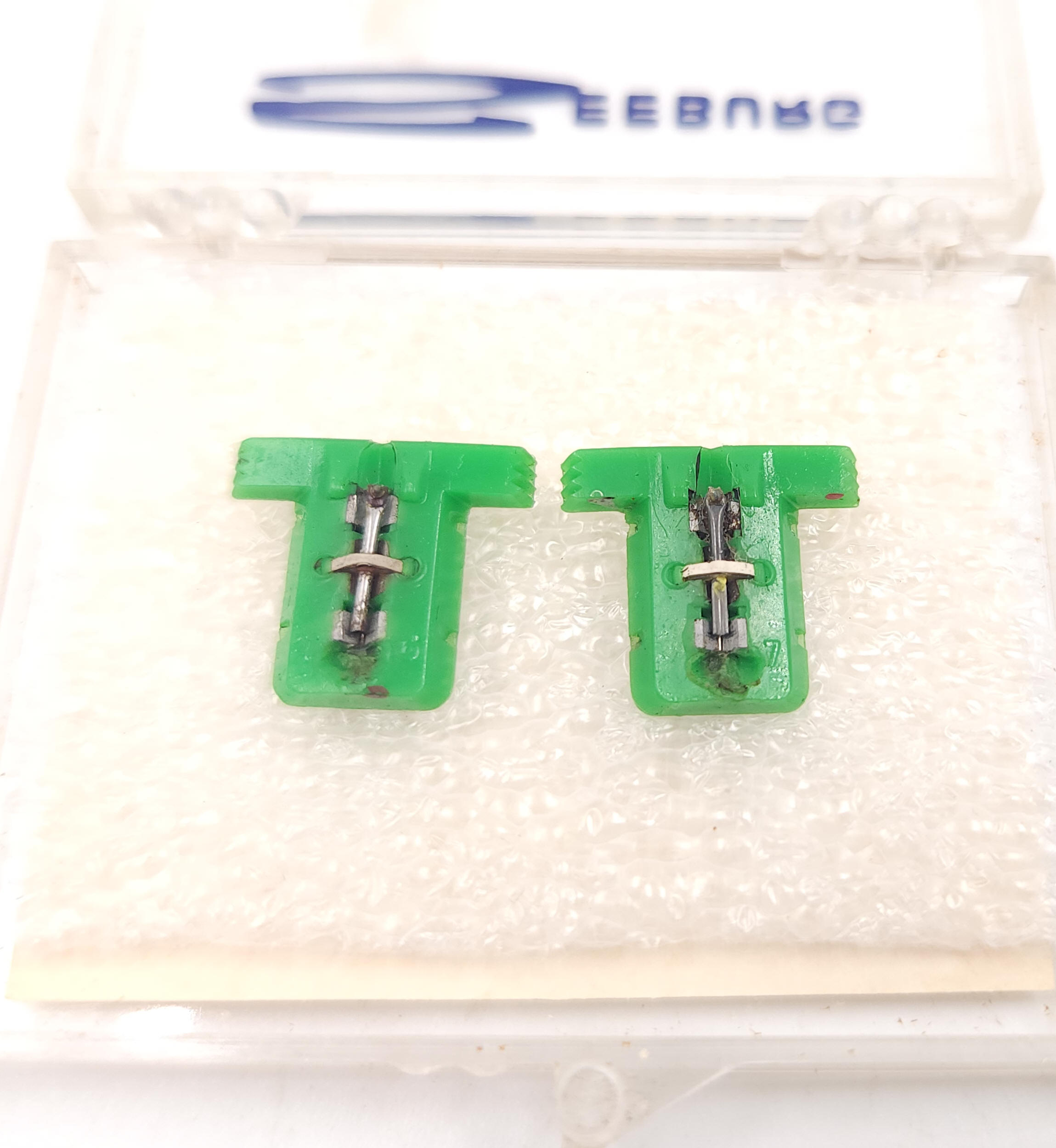

Green 340D needles have been
discontinued by the factory - Use the Yellow Needles above
|
|
