New Replacement Cartridges for AMI Jukeboxes

AMI A-E, F40 & G40 Models

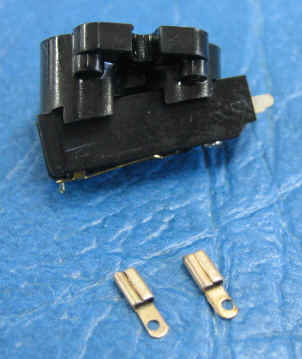

The P51 cartridge is designed to replace the now out of production Astatic #51 which was original equipment on all models A through E, plus F40 and G40

It's the closest match to the original Astatic 51 available and is available in three versions, one for 45's & two for 78's

Max recommended tracking pressure: 8 grams for 78 play and 6 grams on 45 play

Changing to this cartridge from the original will require some soldering and may also require some fitment/modifications

Cartridge sold complete as shown with needle pre-installed and 2 solder lugs

45's and Repro 78 play with Sapphire Tip Good for use with stereo or mono 45 RPM records or new 78's only

(Sold complete with a Sapphire .7 mil stereo compliant needle) $19.99

45's and Repro 78 play with Diamond Tip Best for use with stereo or mono 45 RPM records or new 78's only

(Sold complete with a Diamond .7 mil stereo compliant needle)

Currently Out Of Stock

2 mil: Best machines that Play 45's and 78's or new and old 78's intermixed  For use with original and reproduction 78 RPM records

(Sold complete with a 2 mil sapphire needle installed) $19.99

3 Mil: Best for machines playing vintage 78s  For use with original 78 RPM records

(Sold Complete with 3 mil needle installed) $22.99

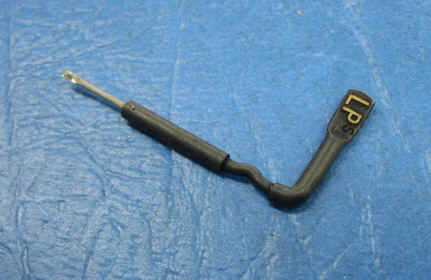

#P51 78 RPM Replacement Needles

Sapphire 2 mil tip $10

Sapphire 3 mil tip $12.99

P51 45 RPM Replacement Needles

Diamond .7 mil tip $14.95 (Best overall pick for 45/33 records)

Currently Out of Stock

Sapphire .7 mil tip $10 (Good for stereo & mono 45's, but shorter life then diamond tip)

Sapphire 1 mil tip $10 (Better for mono 45's, but will play stereo)

J Models with Stereo

The Sonotone 8T was original equipment on J models with stereo sound (may fit some I or K models)

Brand new and a very high quality cartridge. Exact replacement item.

(Note, this version has 4 lugs Vs the original which had 3. You will need to tie the two ground logs together, otherwise it's an exact fit)

Comes as shown with mounting bracket and needle. $119.99

Stereo Compliant . 7 mil Diamond tip $13.95

AMI F Series - Continental 2

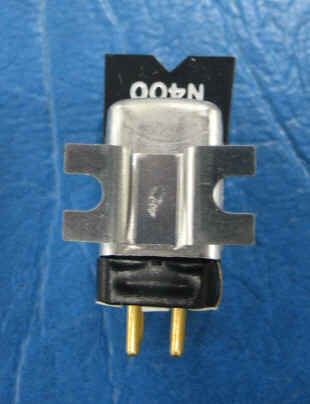

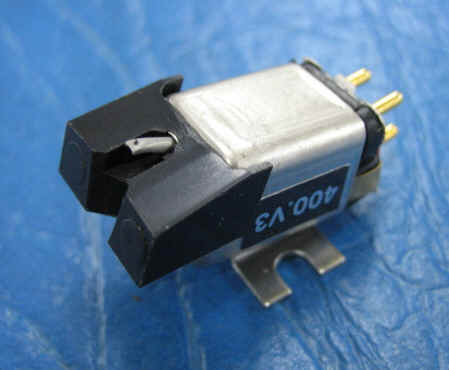

Use this AT3600 cartridge to replace GE magnetic cartridges found in all models F through Continental 2 (except the J series)

(does not fit F40 or G40 models)

Replaces the RPX, RPJ, VRII & VR22

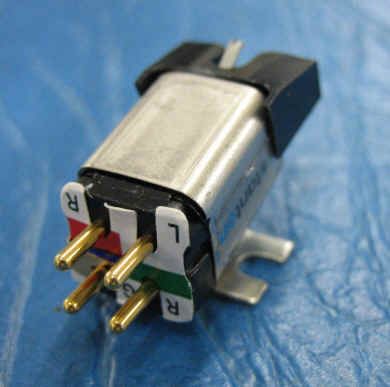

This is a 4 pin stereo cartridge, wire l/r channels in parallel for use on mono equipped models.

Sold as shown, with needle, a generic fastener set & 4 solder lugs

(Fastener set is not meant as an exact replacement set and may not fit your tone arm)

Uses the standard 1/2" mounting  $44.99

Replacement Needles for the AT3600

Commercial Duty - Exact Replacement, Diamond Tip, $19.99
