New Locks

New Locks Lock Help Original Locks





New Locks





Brand New Locks for Jukebox Cash Box Doors/Drawers, Cabinets or Wallboxes

These top quality cylinder locks are perfect replacements for Jukeboxes, Wallboxes, Pinball's & Video Games

horizontal rule



Need Help Selecting The Correct or Closest Possible Match?

Click this link or the button below

horizontal rule

Tubular ACE Brand Locks

Genuine ACE brand locks made to the same specs as the factory originals use in Wurlitzer Jukes & Wallboxes from the late 40's thru early 70's

Excellent replacement for Wurlitzer cash doors and wallboxes original fitted with WCX ACE locks from the factory

Random keying (not WCX series)



Available in two lengths: 11/16" & 15/16"

Select Barrel Length



horizontal rule

Cam Locks

horizontal rule

Tech Tip: When working with cam locks as those below, DO NOT remove the lock core from the cylinder without a key inserted!

On some brands the tumbler pins and their tiny springs will fall out, and it can be next to impossible to find & get them all back in the correct order

horizontal rule

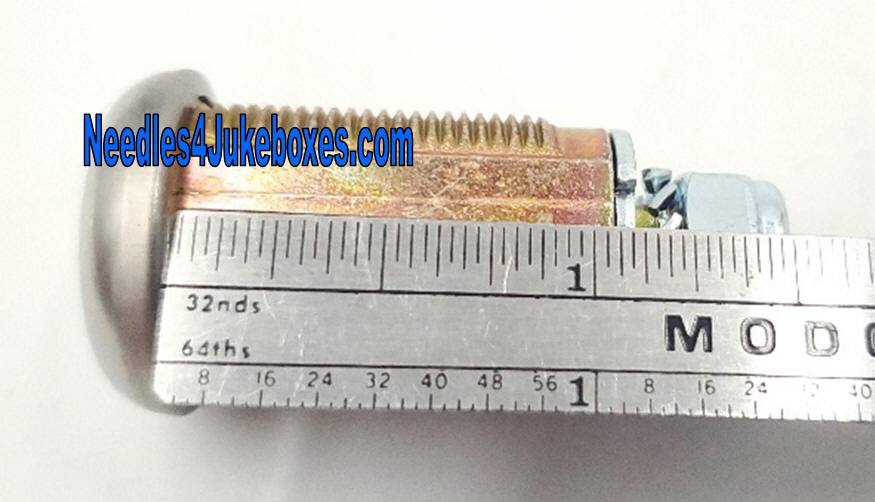

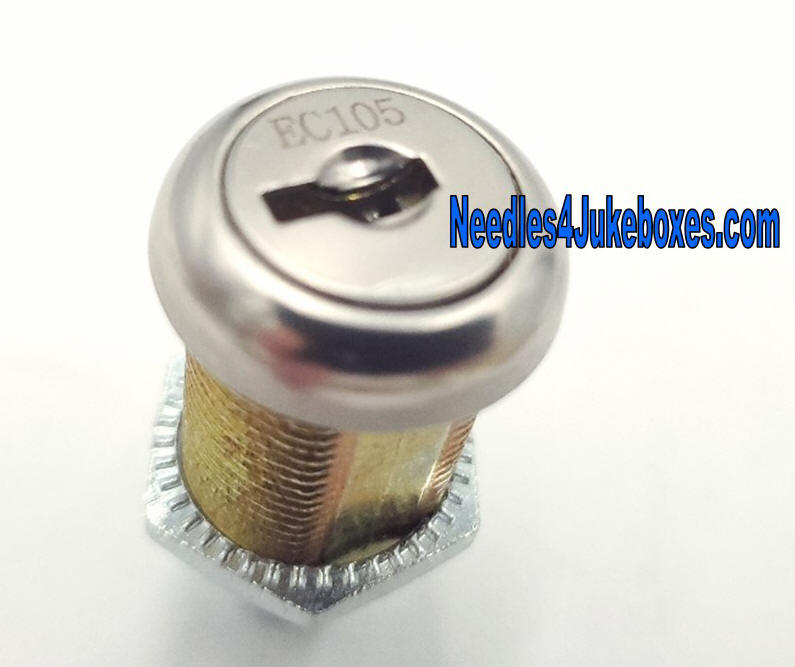

Antique Apparatus & Rockola Retro Jukeboxes

Exact Replacement Lock for models using a 1-1/8" Lock

The EC105 lock was used on most Antique Apparatus models with wooden cases

This may include models like the RB-8, Bubbler, Coca-Cola & Gazelle models

The EC-105 was also used as the cabinet lock on many Rockola Retro Jukeboxes

This may include home use models like the CD4 & CD8 Bubblers

A= 1 1/8"

Confirm this lock length will work with your cabinet before ordering

Note: Some models do use a shorter lock length which I do not currently offer

Click to Select EC105 Lock Options

horizontal rule

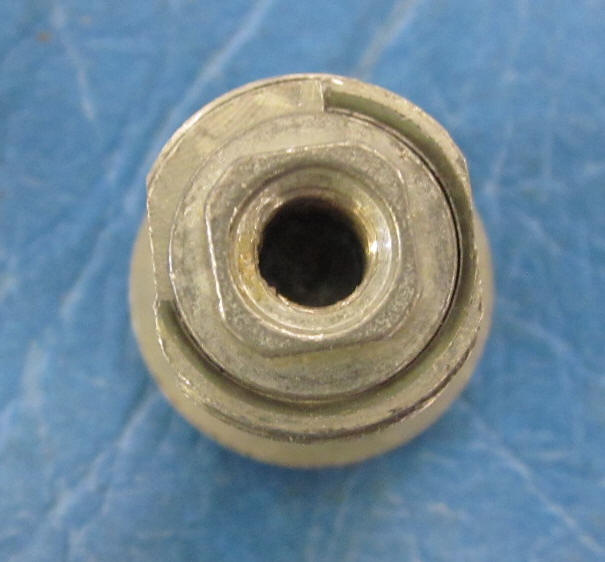

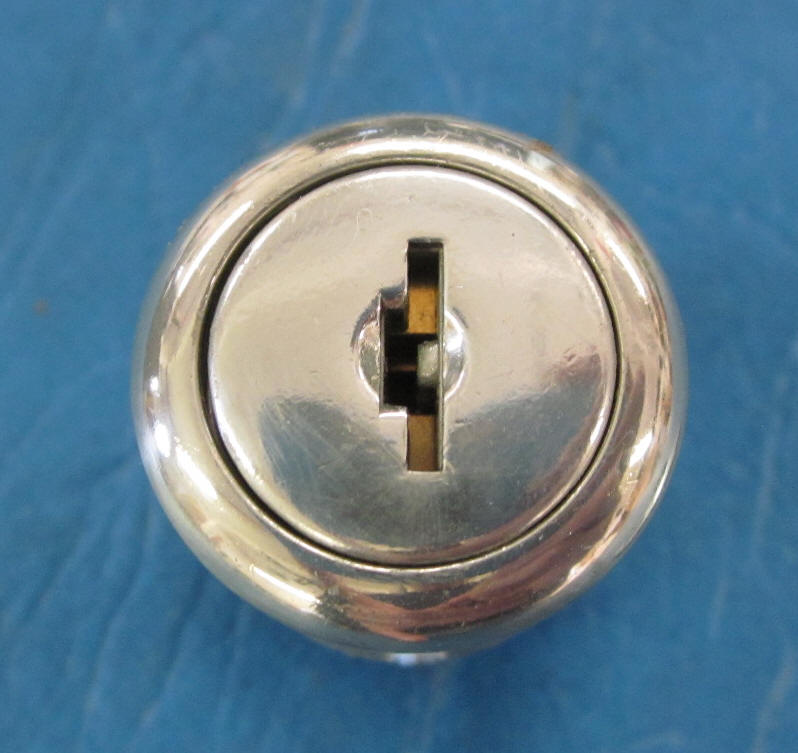

Illinois Brand Locks

Genuine Illinois locks made to the same specs as the factory originals

Illinois locks were standard factory equipment on

Most Seeburgs from 1949 (M100A) and newer

Most Rockola models from the 1432-461

A= 1 1/8"

Rockola Locks

Direct replacement for most cash doors

May also work as a replacement for some lid locks through the 460 model and also some wallboxes

Comes standard with straight cam as shown, I also offer a 1/8" outward offset cam by request

If you need the offset cam, please specify when ordering.



$22.99 Each

Sold without keys, see the Rockola key page to purchase matching keys

Select Lock Number

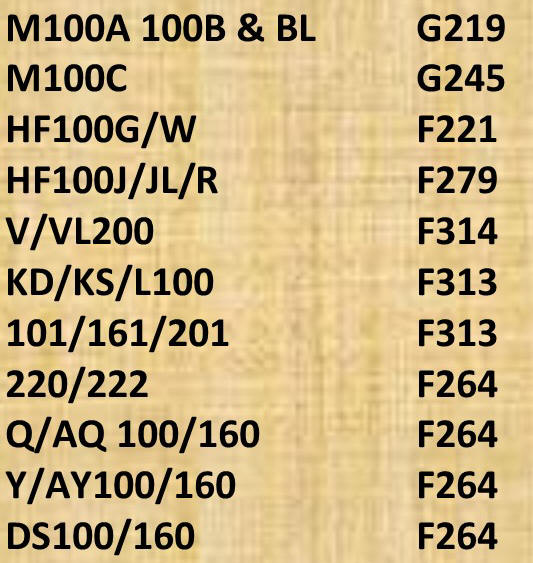

Seeburg Back Door Locks

Exact replacement Illinois back door locks for Seeburg 100A-DS160



$22.99 Each

Sold without keys, see the Seeburg key page to purchase matching keys

Select Lock Number

Seeburg Cash Door Locks - Early

Illinois cash door locks for Seeburg 100A-DS160



$22.99 Each

Sold without keys, see the Seeburg key page to purchase matching keys


Select Lock Number

horizontal rule

Seeburg Cash Door Locks - Late

Illinois cash door locks for Seeburg Models:

F278 for LPC1 & LPC480 - 4 Remaining

and F336 for PFEA1U/APFEA1, SS160 & S100/SE100 - Last One



$22.99 Each

Sold without keys, see the Seeburg key page to purchase matching keys




Key Number

horizontal rule

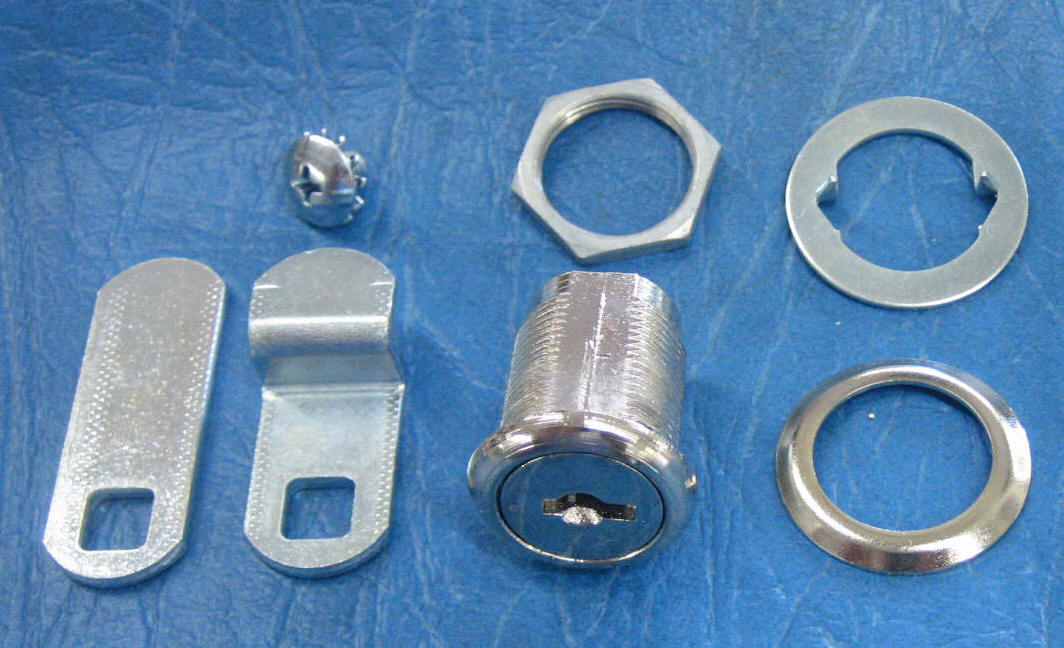

National Locks

Excellent Quality and Exact Replacement for:

AMI Jukeboxes: Model F and later

Rowe jukeboxes: All 45 Models and most CD100 series

Factory Numbered Replacement National Locks

Use these genuine National locks for cabinet lids, back or top access doors and cash doors, each lock is keyed to one of the factory original numbers

Available keying: RI303, C440A, C256A, C33A, C092A & C094A

Not all keyings are available in all sizes, see the drop-down menu's for availability

$19 each all lengths

These locks are sold without keys, if you need to purchase matching keys see the AMI ROWE key page



5/8" Locks: Select Lock Number
Lock Number


15/16" Locks: Select Lock Number

1 3/16" Locks

C440A for late AMI models like the Continental &

Early Rowe's models like JAL/JBM

C094A for many CD100 Lid Locks

1 7/16" Locks: Select Lock Number

C440A for late AMI models like the Continental & early Rowe's models like JAL, JEL & JBM

C092A for many CD100 Lid Locks

Lock Number



horizontal rule

Random Numbered National Locks

Use these where you don't want standardized keying for security reasons or to just save a few dollars

Exact Replacement for: F and later model AMI's

All 45 and most CD Rowe jukeboxes

  National 5/8" Lock

5/8 Barrel length, 3/8" of actual thread, keys included

This is the most common length for WR / Wallette series wallboxes

$15

horizontal rule

National 15/16" Lock

7/8" barrel length, 3/4" actual thread, Keys included

This is the most common length for Rowe & AMI cash doors

Perfect for cash doors, where you don't want standardized keying for security.

$15

horizontal rule

Fort Locks

Quality & Versatility, Available in the following sizes: A= 3/8, 5/8, 7/8, 1 1/8, 1 3/8" or 1 3/4"

Programmable lock, key can be set to release from 1 to 4 positions


Barrel Length

horizontal rule

Chicago Locks

My best quality and highest security lock. Available in 3 lengths: A= 7/16", 5/8", 13/16" or 1 1/2"

Chicago locks were original issue on Wurlitzer jukeboxes.

The closest thing to the original factory lock available today.



Chicago 7/16" Lock  $17.99

horizontal rule

Chicago 5/8" Lock  $17.99

horizontal rule



Chicago 13/16" Lock  $18.99

horizontal rule

Chicago 1 1/2" Lock  $18.99

horizontal rule



Chicago 7/8" Keyed Switch  $17.99

These are limited stock only 8 available
