#12
6.3 Volt Bi-Pin
Used for lighting the "Selection Playing" indicator on KD/101 thru DS models
(also some early LPC-1 models).
Replaces Seeburg part #249198
|
#15
7 Volt Bi-Pin 2cp Used under the mechanism carriage cover
to illuminate the
"Seeburg" emblem plastic on AY and DS models
Replaces Seeburg Part #249602
|
#19
14 Volt B-Pin .9 cp Used on most LPC1's and all later models
through STD4 to illuminate the
Selection Playing Indicator Also fits all SC and DEC
series wallboxes Replaces Seeburg Part #507522
#19 bulb
|

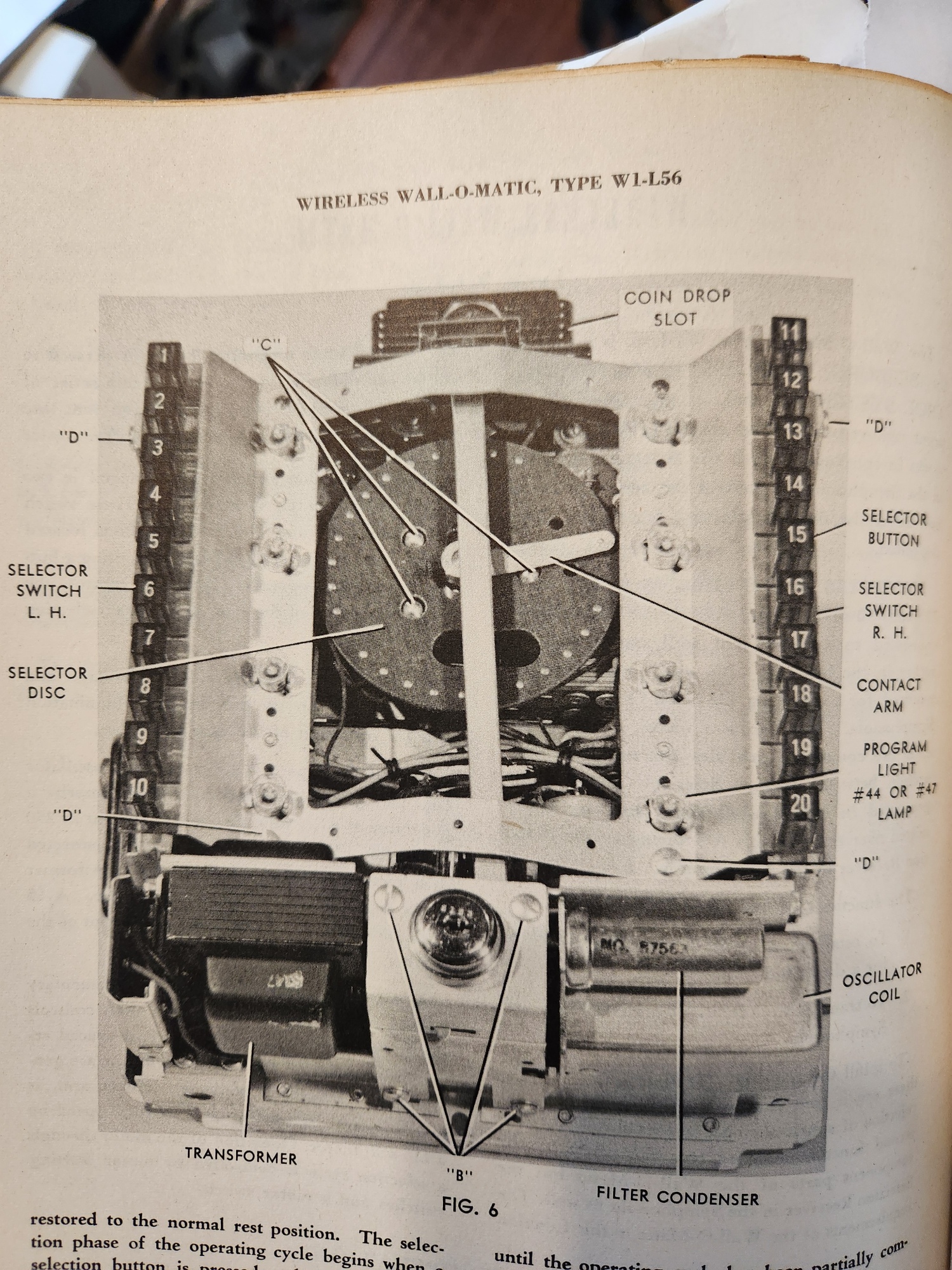

#44
6.3 volt .9 cp
|
#47
6.3 volt .5 cp
|

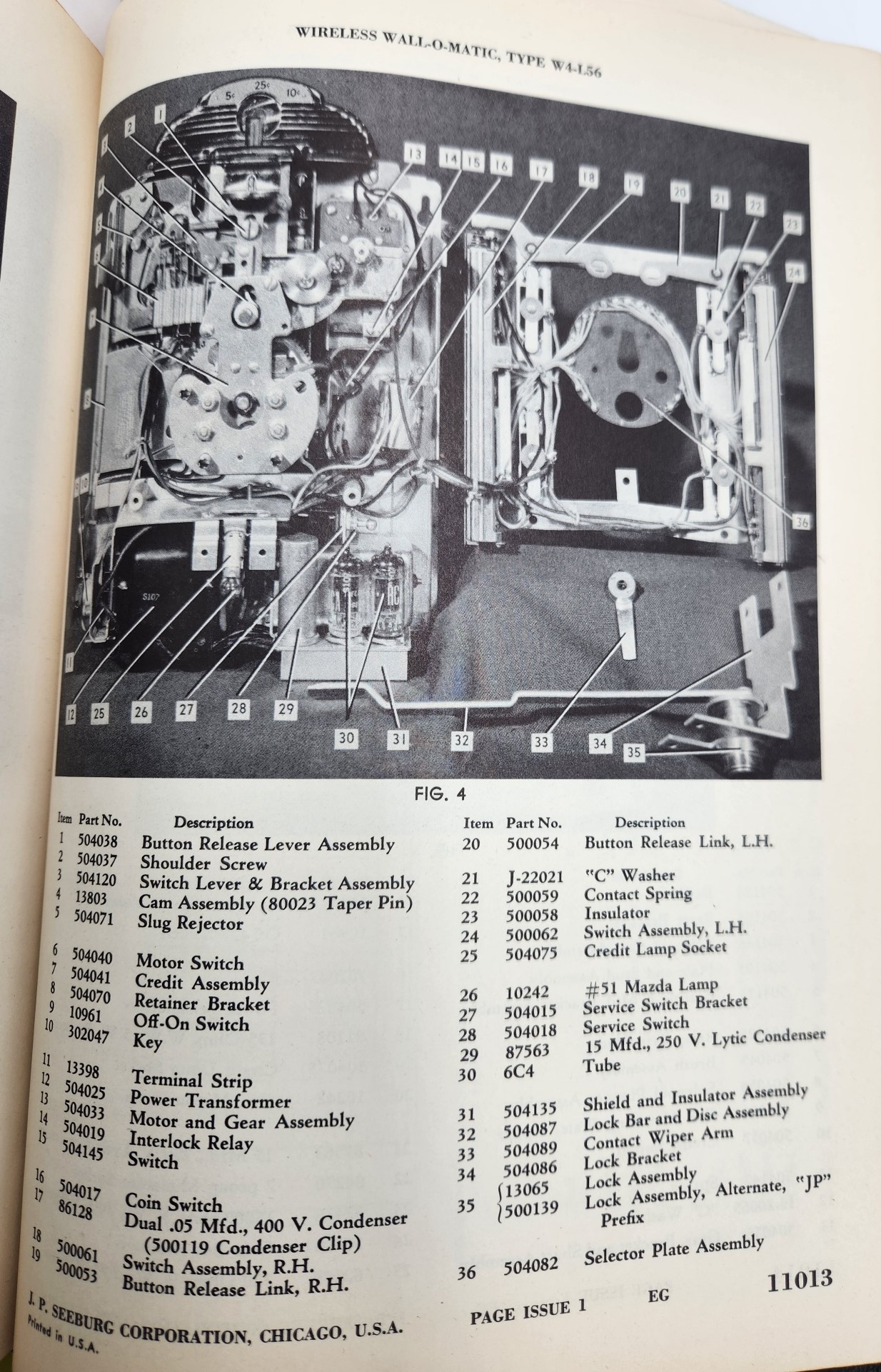

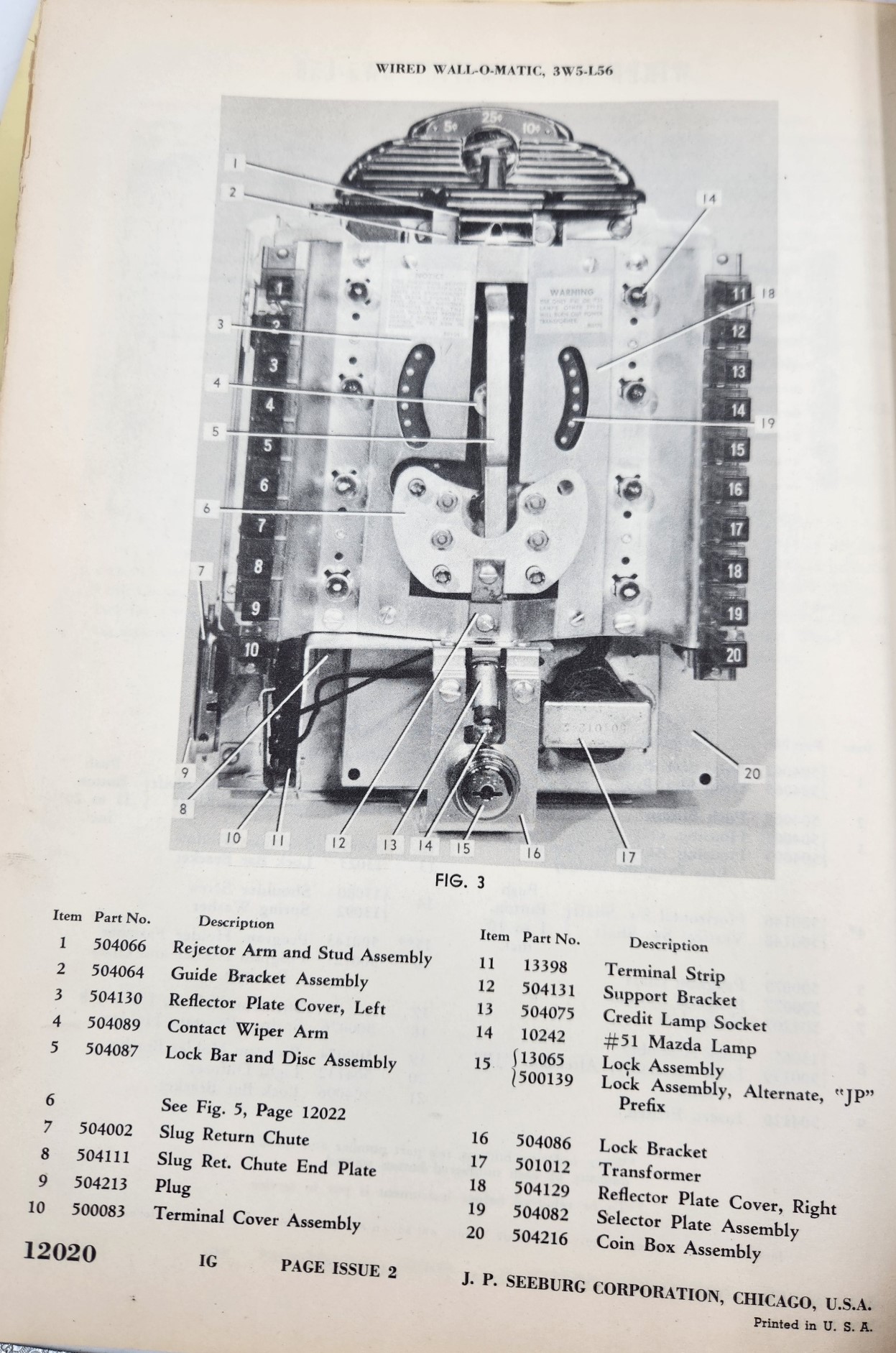

#51
7.5 volt 1 cp The most commonly used bulb in 20 select

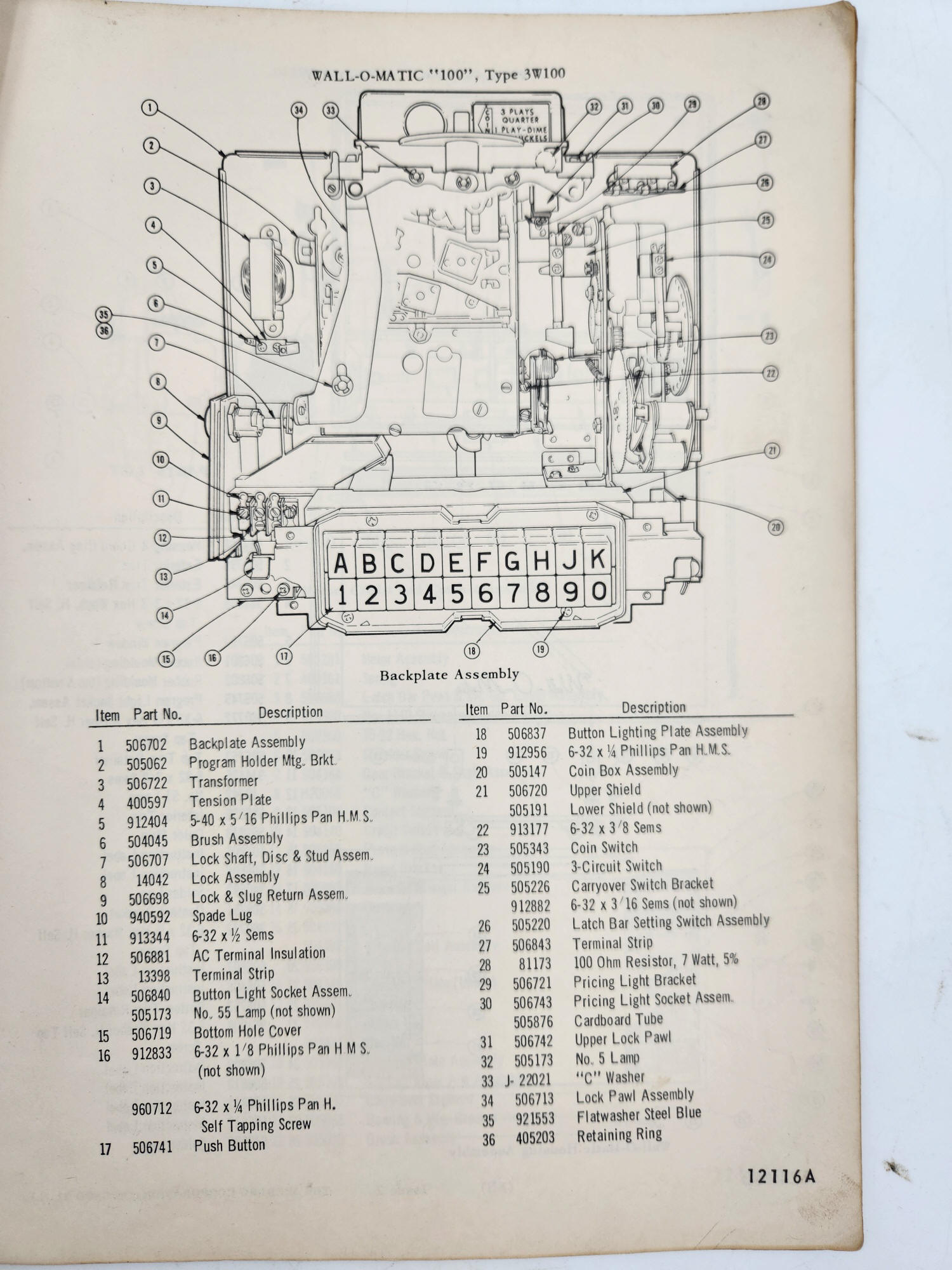

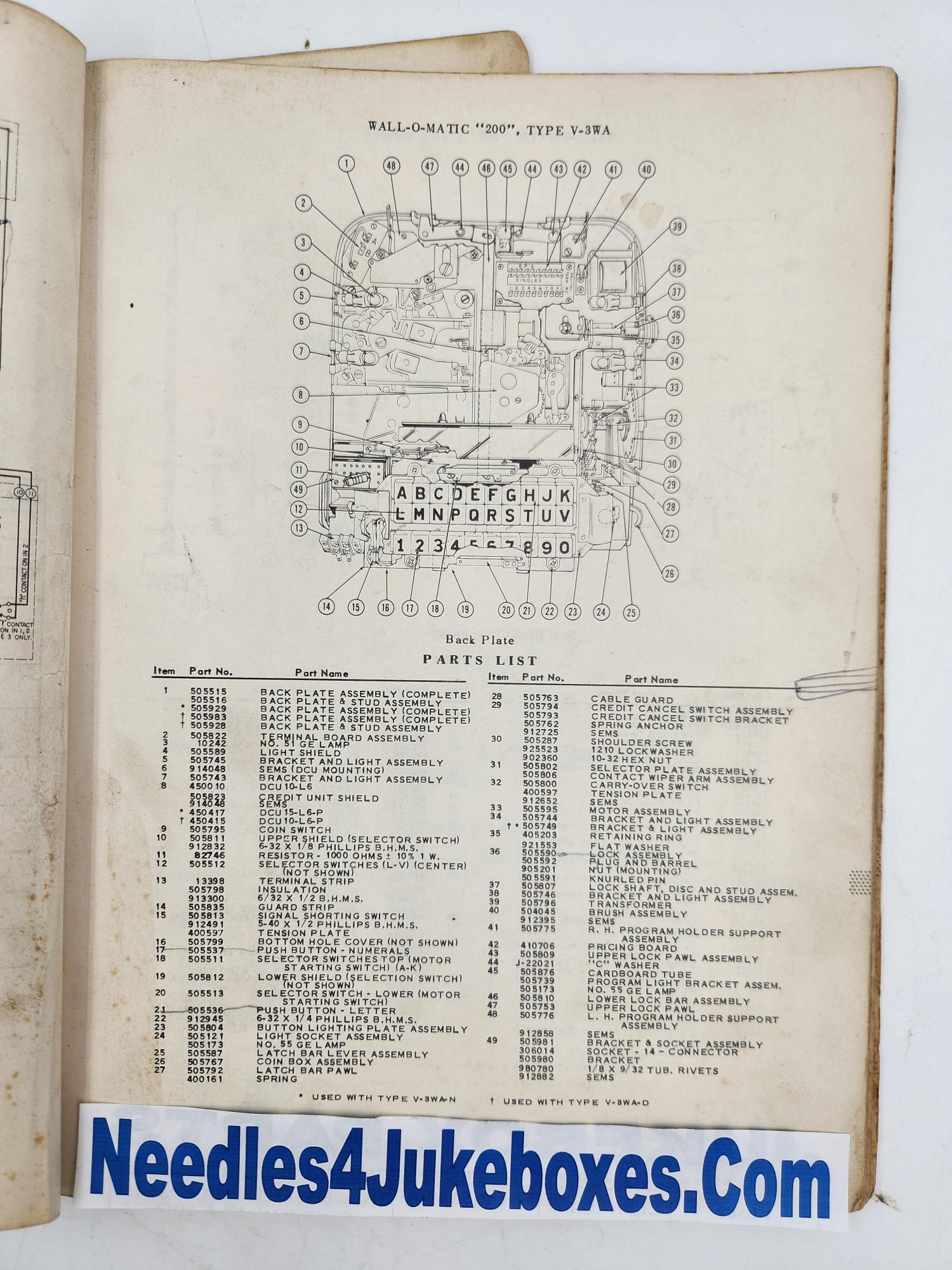

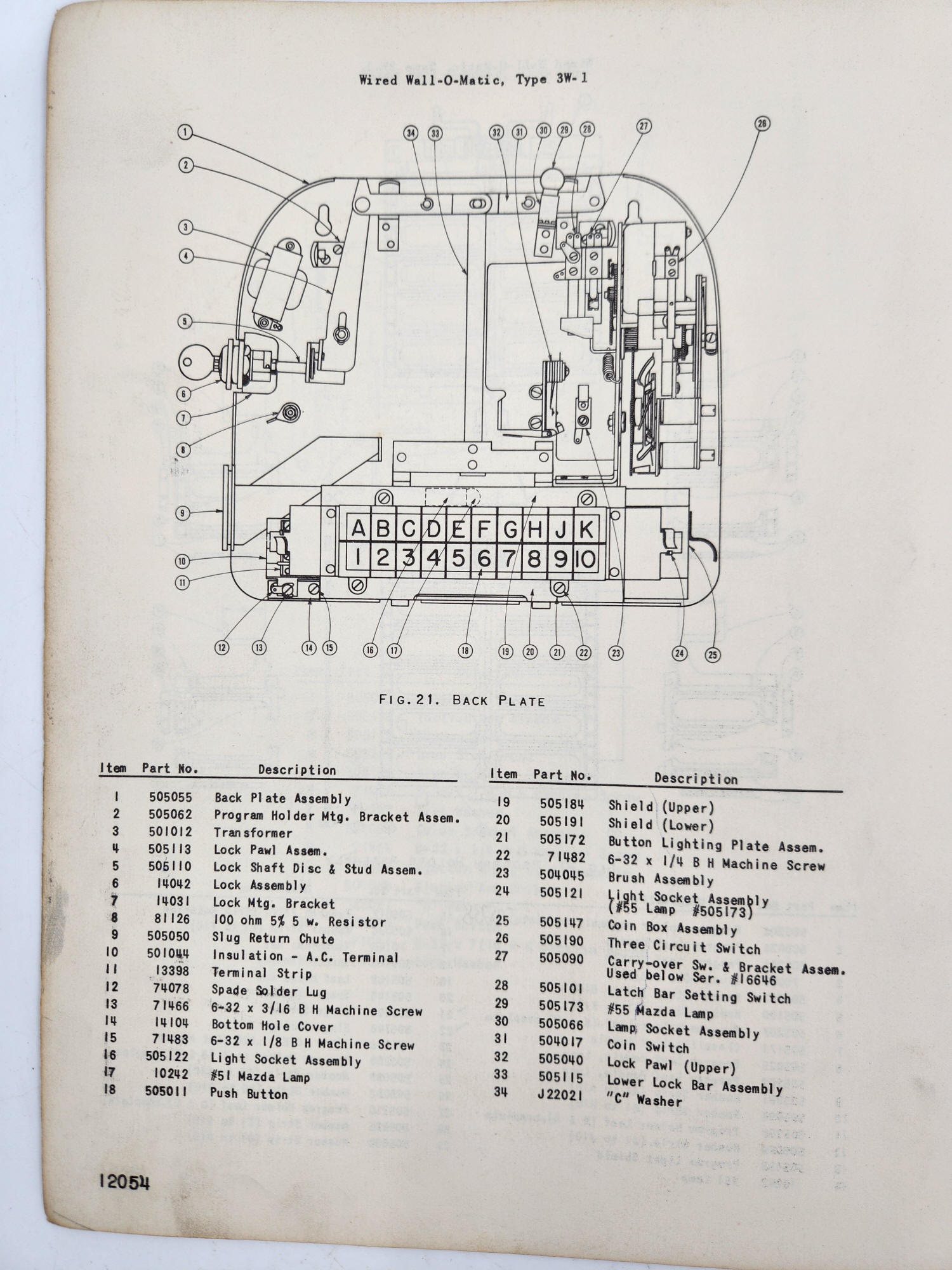

Seeburg wallboxes Fits all 3W1, 3W100, 3WA-160 & 200 series wallboxes,
plus some library units and other various equipment |
#53
14.4 volt 1cp Used on LPC-480, SS-160 and others
|
#55
7 volt 2cp
Fits the Tail Light/After Burner lens in the grill of KD/KS/161/201 models
Also used for the credit/selections lights on most models V200 through
DS160 The most common bulb used in 3W1, 3W100, 3WA-160 & 200 series wallboxes and other various equipment |
#57
14 volt 2cp Lights the "Thank You" lens on LPC-1, LPC-480 &
PFEA
|
#63
7 volt 3cp The #63 lamp is used for lighting the side cover
medallions on mid-50's models like the V/VL & KD/KS Also used in
the 220/222 aqua & pink grill ornaments |
#64
Double Contact 7 volt 3cp Used inside Seeburg BMS - BackGround Music Systems
|
#81
6.5 volt 6cp Commonly found underneath the carriage cover
of the 100 selection 50's models Also used for the pilaster and
selector lights in the P146-7-8 series Used for lighting the
side cover medallions on the 100R &, J/JL And the drum selection
indicator bulbs on V/VL200 & KD/KS200 selectors |
#93
12.8 volt 15cp
Used for lighting the "spot-lighted" EP picture sleeves on LPC-480's
|
#94
12.8 volt 15cp Fits SMC2, used for lighting the disco ball |
#257
14 volt .27 cp Fits LPC-480
|
#656
28 VOLT .62CP Found on Seeburg models LS-3, USC1/2, SPS160
& SPS2, FC1/2 &
STD1-4 Used
for the credit/selection indicator panel left of the digital keypad - fits
into the twist socket offered below |
Twist Socket for the above #656 Lamp
Brand new replacements, correct size for a 5/8" opening
$1.99 each or buy a complete set of 7 sockets for $12
|
#1819
28 VOLT .34 CP Fits LS3, USC1 and USC2 Used to
light the credit status and make selection panel Also fits DEC wallboxes credit & select light boards |
#1847
6.3 volt .38cp
|
2182D
14 volt .3cp Chaser/animation bulb used on STD-2, STD-3,
STD-4 & 100-78D models.
Sold by the box of 10 $12.99
|
#73
Used in SMC3 Animation and as indicator lamps on SCD-1/A models
14 volt .3cp
Sold by the box of 10 for $10

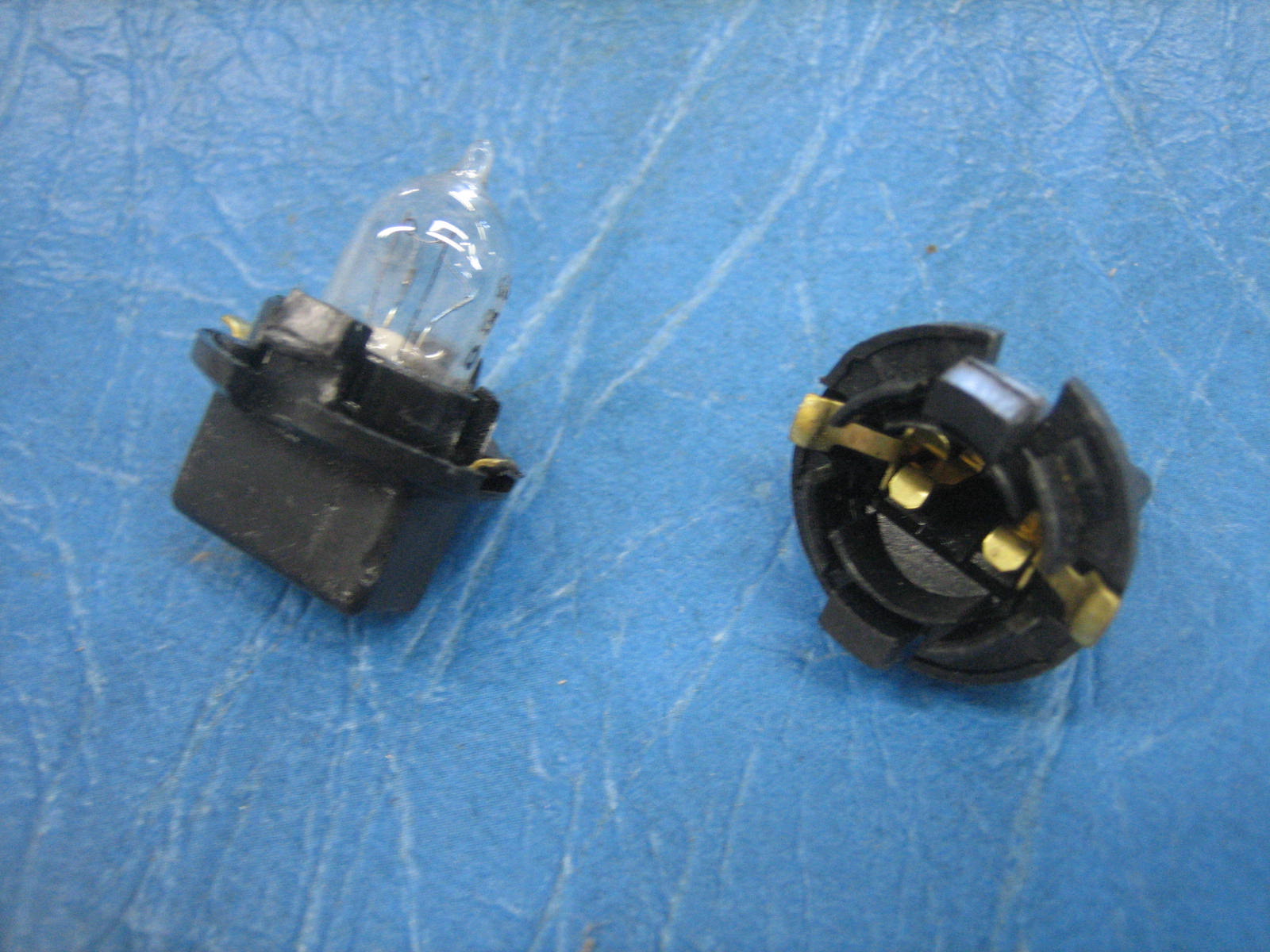

Twist Socket for above #73 Bulb
Sockets are $1.50 each or 10 for $12
or buy 10 sockets and bulbs for just $20!
|
